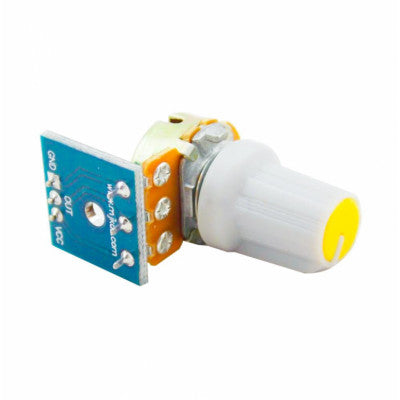

10K Potentiometer Module
An adjustable potentiometer for user interface applications.
- Resistance (?): 10K
- Output Signal: Analog Signal
- Operating Voltage (VDC): 5
- Length (mm): 18
- Width (mm): 23
- Height (mm): 25
- Weight (gm): 8
Key Features:
- Adjustable resistance
- Analog output signal
- Easy connection with berg connector pins
- Compact size for versatile applications
An adjustable potentiometer, the 10K Potentiometer Module can open up many interesting user interfaces. Turn the pot, and the resistance changes. Connect VCC to an outer pin, GND to the other, and the center pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot.
Hook the center pin to an ADC on a microcontroller and get a variable input from the user. A potentiometer is pre-mounted on a PCB board, and 3 output berg connector pins are available for easy connections and disconnections of the module in your project. Please note that the color of the product may vary as per availability.
* Images are for illustration only; actual product may vary.
