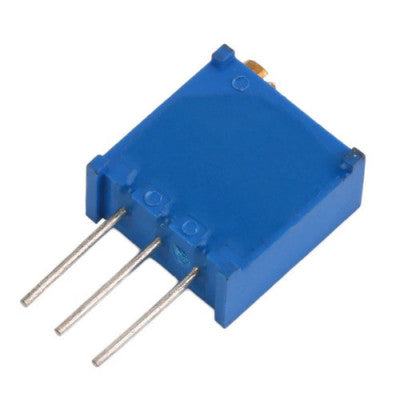

Trimpot
High accuracy variable resistor with 3 terminal pins for PCB mounting
- Track Resistance: 10K ohm
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 50ppm/°C
- Potentiometer Mounting: Through Hole
- Adjustment Type: Top
- Contact Resistance Variation: 1%
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +125°C
- Resistance: 10K ohm
- Resistor Element Material: Variable Rotary Trimmer
The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0V and Vcc as the rotary cermet is rotated.
Top Features:
- High accuracy
- 3 terminal pins
- Temperature coefficient ± 50ppm/°C
- Through Hole mounting
*Images are for illustration only; actual product may vary.
