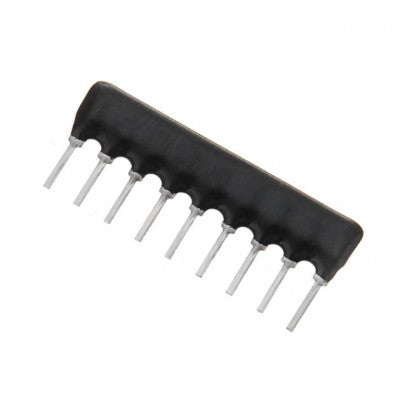

10K Ohm 9 Pin Resistor Network - SIP
A passive component with eight 10K ohm resistances and one common ground.
- Resistance: 10K Ohms
- Tolerance: ±5%
- Maximum Working Voltage: 100(V)
- Maximum Overload Voltage: 150(V)
- Mounting Type: Through Hole
- Power Rating: 1/2 Watt
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 155°C
- Color: Black
- Pins: 9
- Resistors: 8
Top Features:
- 10K Ohm Resistance
- ±5% Tolerance
- 1/2 Watt Power Rating
- Through Hole Mounting
The resistor array is a passive nine-terminal electrical component that serves as eight 10K ohms resistances and one common ground. It offers maximum short time overload and minimum insulation resistance. The dielectric withstanding voltage shows no evidence of flashover, mechanical damage, arcing, or insulation breakdown.
Package Includes: 1 x 10K ohm 9 Pin Resistor Network - SIP
* Images are for illustration only; actual product may vary.
