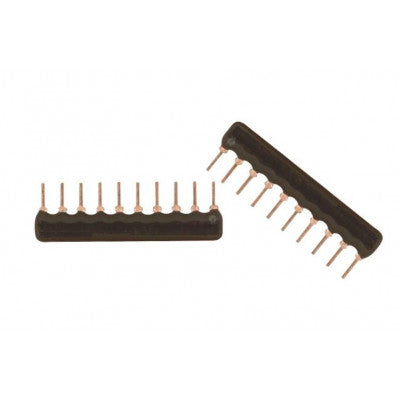

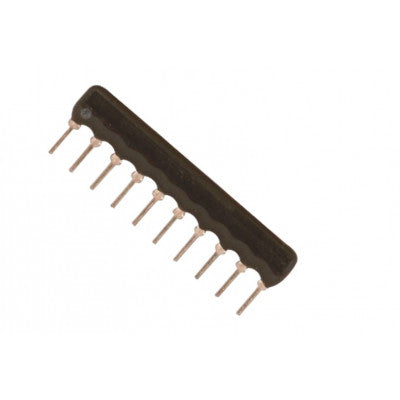

10K Ohm Through Hole Resistor Network
A passive nine-terminal electrical component with nine 10K ohms resistances and one common ground.
- Resistance: 10K Ohms
- Tolerance: ±5%
- Maximum Working Voltage: 100(V)
- Maximum Overload Voltage: 150(V)
- Mounting Type: Through Hole
- Power Rating: 1/8 Watt
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 155°C
- Color: Black
- Pins: 10
- Resistors: 9
Top Features:
- 10K Ohm Resistance
- Through Hole Mounting
- 1/8 Watt Power Rating
- Black Color
The 10K Ohm Through Hole Resistor Network is a passive nine-terminal electrical component that provides nine 10K ohms resistances and one common ground. It has a tolerance of ±5% and a maximum working voltage of 100V, with a maximum overload voltage of 150V. The resistor network is designed for through-hole mounting and has a power rating of 1/8 Watt.
With a temperature coefficient of ±200ppm/°C, this resistor network can operate in temperatures ranging from -55°C to 155°C. The black-colored network comes with 10 pins, including 9 resistors.
Package Includes:
- 1 x 10K ohm 10 Pin Resistor Network - SIP
* Images are for illustration only; actual product may vary.
