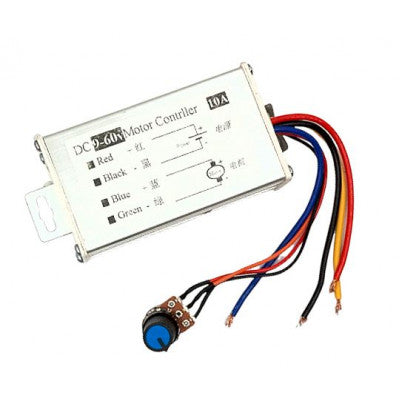

10A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V)
Suitable for DC brushed motors within 10A, with adjustable speed range and easy installation.
- Driver Model: 10A PWM DC Motor Speed Regulator
- Operating Voltage (VDC): 9 ~ 60
- Peak Current (A): 10
- Continuous Current (A): Within 10A
- Continuous Power: 600W
- PWM Frequency: 25KHz
- Speed Type: Modulated Current
- Speed Mode: Linear potentiometer 270 degrees
- Speed Range: 0-100%
- Cable Length (cm): 13
- Arduino Shield: No - can be used with wire connection
- Speed Control: Yes
- Dimensions (L x W x H) mm: 90 x 50 x 35
- Weight (gm): 105
Features:
- Adjustable speed range: 0%-100%
- Speed adjustment via potentiometer
- Output voltage: Linear under load
- Speed control type: Basins
The 10A PWM DC Motor Speed Regulator Module is designed for DC brushed motors or loads within 10A. It features a potentiometer for speed adjustment and a button switch function. Remember to turn off the power before wiring the controller to avoid damage. The connection mode includes red line for power +, black line for power -, blue line for motor +, and yellow line for motor -.
WARNING: Do not reverse positive and negative power loads as it will damage the controller. To change motor direction, interchange the positive and negative wires of the motor.
