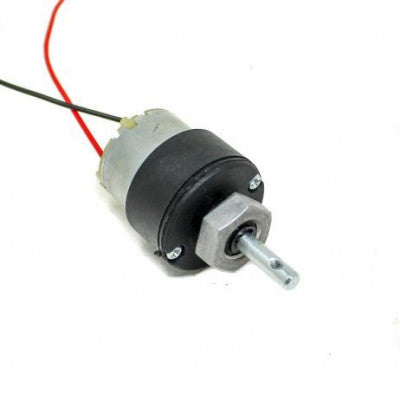

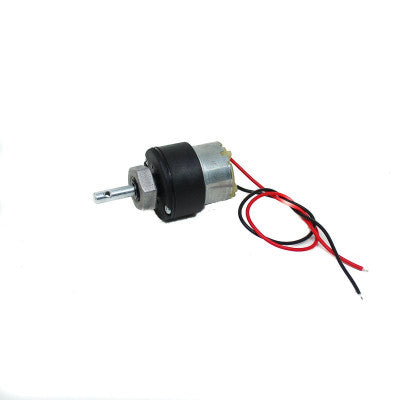

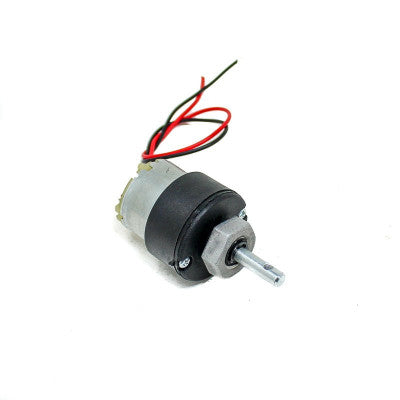

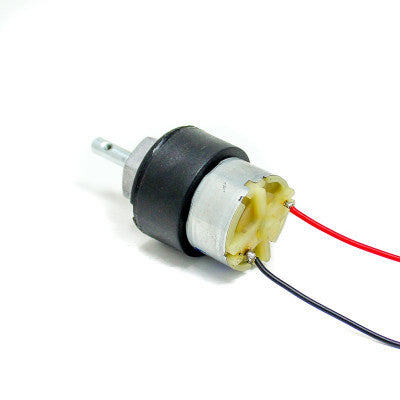

12 Volt Metal Gears DC Motor 100 RPM
Perfect for all-terrain robots and various robotic applications.
- Gear Material: Metal
- Rated Speed (RPM): 100
- Operating Voltage (VDC): 12
- Rated Torque (kg-cm): 2.9
- Stall Torque (Kg-Cm): 11.4
- Load Current Max (mA): 300
- No-Load Current (mA): 60
- Gearbox Diameter (mm): 38
- Motor Diameter (mm): 32
- Motor Length (mm): 75
- Shaft Diameter (mm): 6
- Shaft Length (mm): 21
- Weight (gm): 75
Features:
- Good Quality Gears
- Metal gears for durability

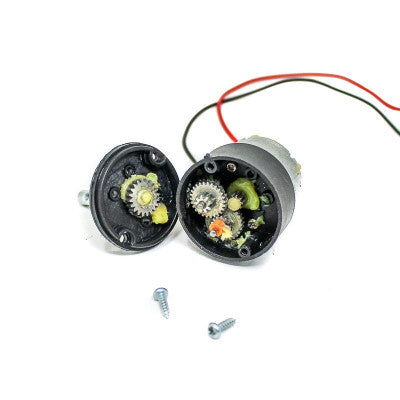

- Sealed and lubricated gearbox
- Wide operating range from 4V to 12V
This 12 Volt Metal Gears DC Motor 100 RPM is a simple DC motor with metal gears, ideal for various robotic applications. The motor runs smoothly from 4V to 12V, providing a wide range of RPM and torque. It features a shaft hole for better coupling and easy connection to wheels or other mechanical assemblies.

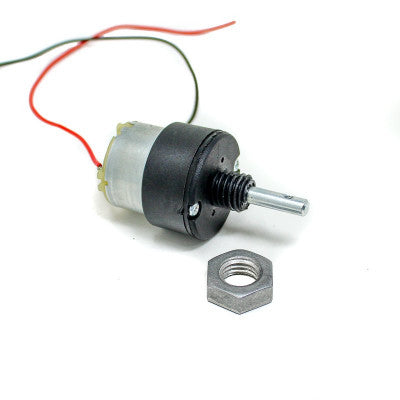

These motors are known as Center Shaft DC Geared Motors due to the shaft extending through the center of the gearbox assembly. They are easy to use and can be controlled with an Arduino or compatible board using the L298N H-bridge module with an onboard voltage regulator motor driver (5-35V DC).
The package includes 1 x 100RPM 12V Low Noise DC Motor With Metal Gears Grade A.
*Images are for illustration only; actual product may vary.
