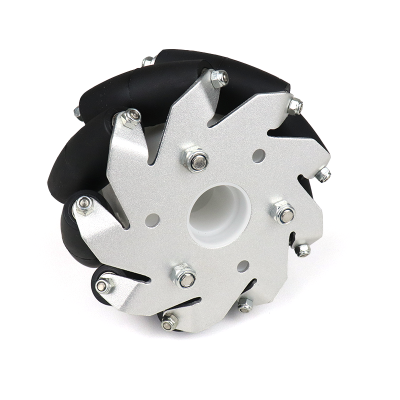

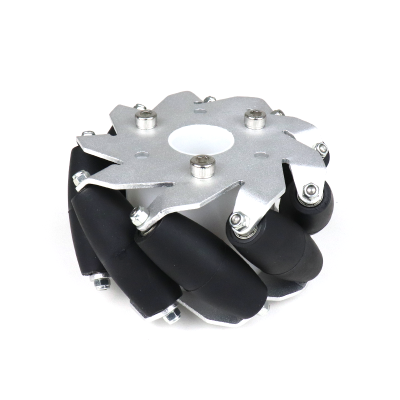

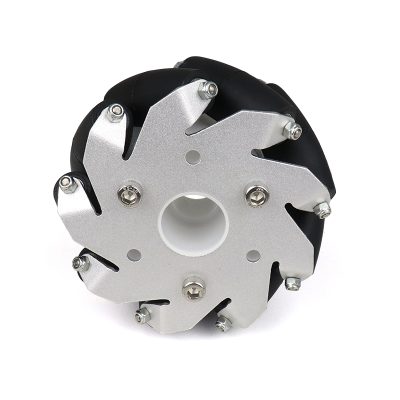

100mm Aluminum Mecanum Wheels (Bush Type Rollers)
Omnidirectional movement with strong weight support
- Size: 4(100mm) Diameter
- Thickness of Wheel: 50mm
- Weight: 340 grams
- Roller Material: Nitrile rubber
- Side Plates: Aluminum (High-Grade Alloy Aluminum)
- Plate Thickness: 2.5mm
- Nut: Nylock Nut
- Bearing Type: Single Groove Ball Bearing, Double Sealed
- Holes for Mounting: PCD 47.5mm
- Diameter of Holes: 5mm (M5 Bolt Compatible)
Top Features:
- Supports omnidirectional movement
- Designed for large weight support
- 9 rollers for smooth translation of force
- High-grade alloy aluminum side plates
The 4(100mm) Mecanum wheels utilize 9 rollers positioned between 2 plates to allow movement in any direction. The rollers translate the force in the rotational direction of the wheel to a force normal to the wheel direction.
Package Includes:
- 1 x 100mm Aluminum Mecanum Wheels (Bush Type Rollers) Right

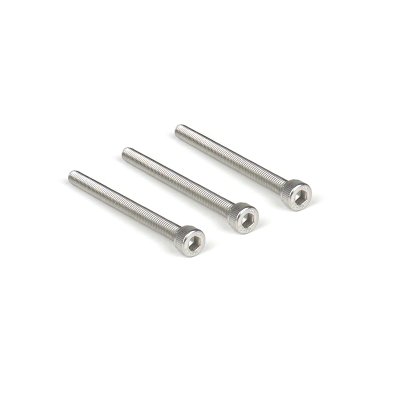

- 3 x M5 Allen Bolts for Coupling - 3 pcs
Specifications:
- Roller Type: Bush
- Body Material: Aluminum
- Internal Diameter (ID): 18mm
- Length of Roller: 47.5mm
- Load Capacity (Kg/Wheel): 8 - 10
- Net Weight: 400 grams
- Number of Plates: 2
- Number of Rollers per Wheel: 9
- Outer Diameter (OD): 100mm
- Roller Material: Nylon + TPR
- Spacer Material: Nylon
- Wheel Width: 50mm
- Plate Thickness: 2.5mm
- Diameter of Holes: 5mm (M5 Bolt Compatible)
- Holes for Mounting: PCD 47.5mm
- Nut Type: Hex Nyloc Nut
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
