100mm Aluminum Mecanum Wheels (Bearing Type Rollers)
Supports omnidirectional movement with large weight capacity.
- Size: 4 (100mm) Diameter
- Thickness of Wheel: 45mm
- Weight: 340 grams
- Roller Material: Nitrile rubber
- Side Plates: Aluminum (High-Grade Alloy Aluminum)
- Plate Thickness: 2.5mm
- Bearing Type: Single groove ball bearing, Double sealed
- Holes for Mounting: PCD 47.5mm
- Diameter of Holes: 5mm (M5 bolt compatible)
- Maximum Load Capacity: 15KG
- Number of Rollers: 9
- Body Material: Aluminum Alloy
- Roller Material: Rubber
- Spacer Material: Nylon
Top Features:
- Supports omnidirectional movement
- High weight capacity of 15KG
- 9 rollers for smooth operation
- Aluminum side plates for durability

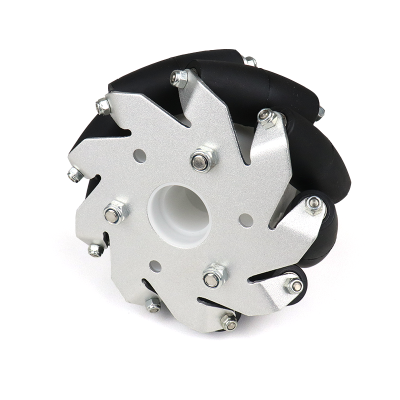

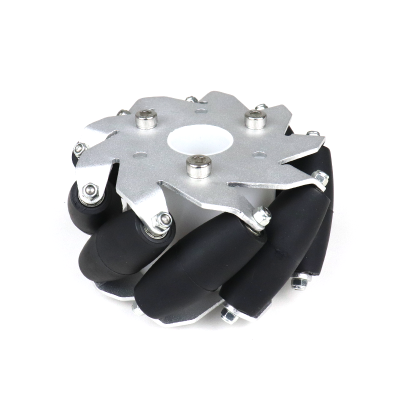

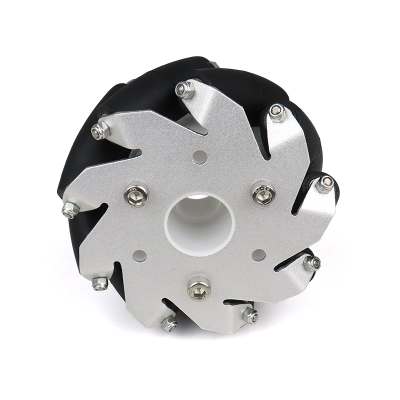

The 100mm Aluminum Mecanum wheels (Bearing type rollers) set includes 1 left wheel with a diameter of 100mm and a roller length of 19mm. Each wheel consists of 2 plates and 9 rollers, designed for movement in any direction. The rollers efficiently translate rotational force into a force normal to the wheel direction.
Package Includes:
- 1 x 100mm Aluminum Mecanum Wheels (Bearing Type Rollers) LEFT

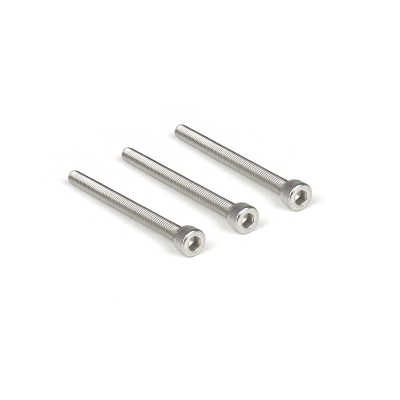

- 3 x M5 Allen Bolts for coupling
Specifications:
- Roller Type: Bearing
- Body Material: Aluminum
- Holes for Mounting: PCD 47.5mm
- Internal Diameter (ID): 18mm
- Length of Roller: 47.5mm
- Load Capacity (Kg/Wheel): 10 ~ 12
- Net Weight: 400 grams
- Number of Plates: 2
- Number of Rollers per Wheel: 9
- Outer Diameter (OD): 100mm
- Roller Material: Nylon+TPR
- Spacer Material: Nylon
- Wheel Width: 54mm
- Plate Thickness: 2.5mm
- Diameter of Holes: 5mm (M5 bolt compatible)
- Nut Type: Hex Nyloc Nut
*Images are for illustration only; actual product may vary.
