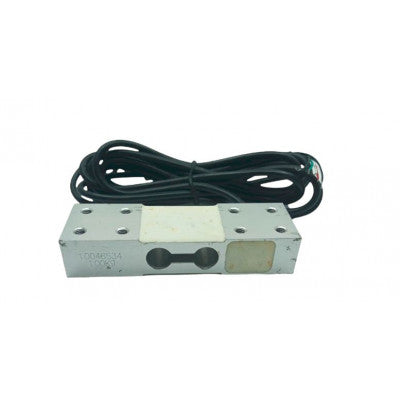

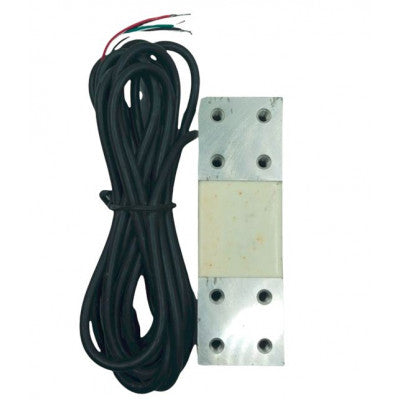

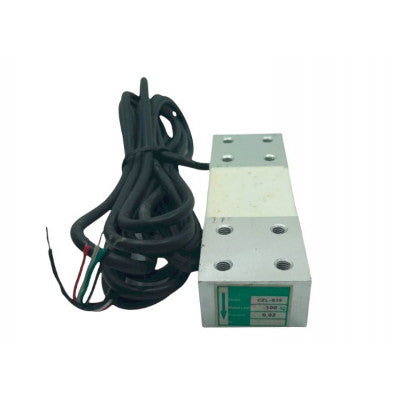

100kg Load Cell for Weighing up to 100 Kg
A standard load cell for precise weight measurement up to 100 Kg.
- Capacity: 100 KG
- Rated output(MV/V): 1.944 mv/v
- Combined error(%RO): <±0.030
- Creep(%RO/30min): 0.018
- Temperature effect on sensitivity(%RO/°C): 0.016
- Temperature effect on zero(%RO/°C): 0.020
- Zero balance(%RO): 1.5
- Input resistance(O): 405±10
- Output resistance(O): 350±5
- Insulation resistance(MO<50V>): 5000
- Recommended excitation voltage(V): 10~15
- Compensated temperature range(°C): -10~+40
- Operating temperature range(°C): -35~+80
- Safe overload(%RO): 120
- Ultimate overload(%RO): 150
- Load cell material: Aluminium
- Method of connecting wire: Red(+), Black(-), Green(+), White(-)
Top Features:
- High precision weight measurement
- Aluminium construction for durability
- Wide operating temperature range
- Easy to connect with color-coded wires
This load cell is essential for applications requiring accurate weight measurement up to 100 Kg. It is commonly used in weighing machines and various measuring instruments such as electronic platform scales, digital scales, parcel post scales, and electronic balances.
The output of this load cell is in millivolts and needs amplification by an instrumentation amplifier for micro-controller readability. The electrical signal output is proportional to the force being measured, making it ideal for precise weight calculations.
Package Includes: 1 x 100kg Load Cell Electronic Weighing Scale Sensor
*Images are for illustration only; actual product may vary.
