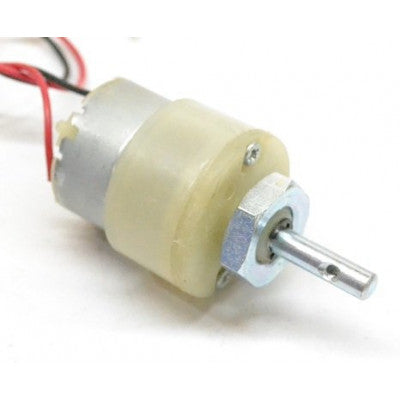

DC Motor – 100RPM – 12Volts
Perfect for robotics applications with 100 RPM speed and 12V operating voltage.
- RPM: 100
- Operating Voltage: 12V DC
- Gearbox: Attached Plastic (spur) Gearbox
- Shaft diameter: 6mm with internal hole
- Torque: 2 kg-cm
- No-load current: 60 mA (Max)
- Load current: 300 mA (Max)
Top Features:
- Robust metal gearbox for heavy-duty applications
- Easy to connect with nut and threads on the shaft
- Internal threaded shaft for connecting to wheels
- Wide RPM range ideal for robotics and industrial use
Geared motors are essentially simple DC motors with a gearbox attached, making them perfect for all-terrain robots and various robotic applications. The 3mm threaded drill hole in the shaft simplifies connection to wheels or other mechanical assemblies.
These 100 RPM 12V DC geared motors are widely used in robotics applications due to their ease of use and standard size. You can control these motors with an Arduino or compatible board without spending a lot of money. The popular L298N H-bridge module with an onboard voltage regulator motor driver is compatible with this motor, operating between 5 and 35V DC. Alternatively, you can choose a more precise motor driver module from our wide range of options in the Motor drivers category to meet your specific requirements.
For any additional details or inquiries about bulk pricing, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
