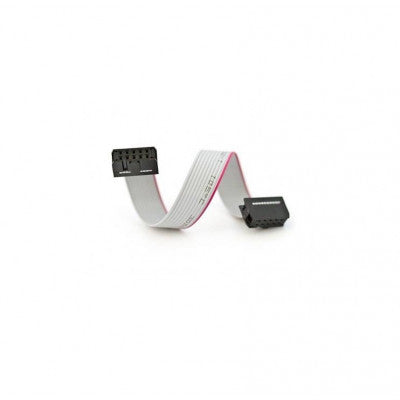

10 Pin (10 Wire) Female to Female Connector Flat Ribbon Cable (FRC) Cable
Flexible 10-pin ribbon cable with 120 ? impedance, 30 cm length
This 10 Pin (10 Wire) Female to Female Connector Flat Ribbon Cable (FRC) Cable consists of 10 conducting wires stuck together in parallel. Flat Ribbon Cable/FRC is also known as multi-wire planar cable because they are the type of cables formed by joining insulated wires in a flat plane forming the ribbon shape. In other words, ribbon cable has many conducting wires running parallel to each other on the same flat plane.
These wires are commonly used for internal peripherals in computers, such as hard drives, CD drives, wired robots, etc. This ribbon cable allowed major companies to replace bulky, stiff round cables with sleek, flexible ribbon cables. FRC is an ideal way to connect two devices digitally.
The resultant impedance for any two adjacent wires within the cable is 120 Ohms. FRC also folds and bends readily, conforming to the mounting area, and they fasten easily with clamps, adhesive, or double-faced tape. Since the conductors are visible and in a fixed position within the dielectric coding, inspection and circuit tracing are simplified.
- 10 conducting wires in parallel
- 120 ? impedance between adjacent wires
- Sleek, flexible ribbon cable design
- Ideal for digital device connections
- Folds and bends to fit installations
- Easy clamp, adhesive, or tape fastening
- Visible conductors simplify inspection and tracing
- Replaces bulky, stiff round cables
- Cable Length: 30 cm
- No. of Pins/Wires: 10
- Impedance: 120 Ohms between adjacent wires
- Package Includes: 1 x 10 Pin (10 Wire) Female to Female Connector Flat Ribbon Cable (FRC) Cable - 30 cm Length
