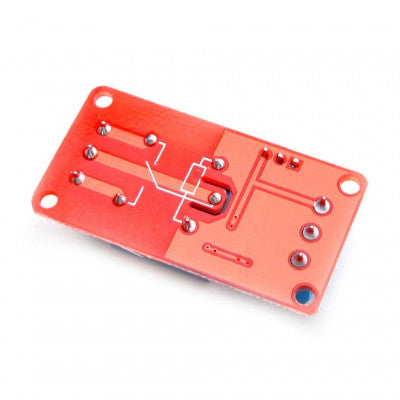

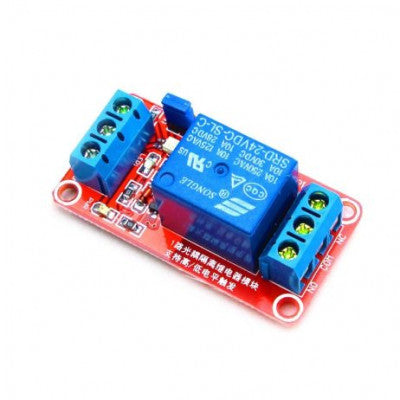

1 Channel Relay Module 24V High and Low Level Trigger Relay Module
Control 240V appliances directly from Arduino or Raspberry Pi
- Version: 24V
- Trigger: High or Low Level
- No. of Channel: 1
- Equipped with high-current relay: 15A @ 125V AC or 10A @ 250V AC
- Standard interface: Can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM)
- Dimensions (mm): 50 x 25 x 20
- Product weight (g): 16g
Top Features:
- Control 240V appliances
- High-quality relay
- Easy to make and remove connections
- Wide range of control input voltages
The 1 Channel Relay Module 24V High and Low Level Trigger Relay Module is small and easy to use. It allows you to control one 240V power appliance directly from Arduino, Raspberry Pi, and other microcontrollers or low-voltage circuits. This module is perfect for switching 240V appliances like lights, fans, and even high-power motors at lower voltages.
The board features a high-quality relay that can handle a maximum of 10A/250 V AC or 15A/125 V AC. Each relay has all three connections (common, normally open, and normally closed) brought out to three-pin screw terminals, making it easy to make and remove connections. Additionally, the board has a power indication and a relay status LED for easy debugging.
The board can accept control inputs within a wide range of voltages, from 12V to 24V. Power input and relay control signals are brought to header pins on the board, allowing easy interfacing with development boards using jumper wires.
* Images are for illustration only; actual product may vary.
