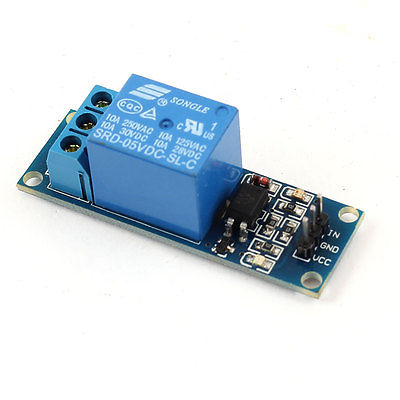

1 Channel 5V Relay Board Module For Arduino PIC AVR DSP ARM
A versatile relay board compatible with various microcontrollers for easy control.
- Operating Voltage: 5V
- Max Current: 20mA
- Relay Contact Current Capacity at AC250V: 10A
- Relay Contact Current Capacity at DC5V: 10A
-
Features:
- 1 channel relay board
- One normally closed contact and one normally open contact
- Triode drive for increased relay coil efficiency
- High impedance controller pin
Each channel requires 15mA - 20mA driver current and is equipped with a high current relay: DC 5V / 10A, AC 250V / 10A. The board offers a standard interface that is compatible with various microcontrollers like Arduino, AVR, PIC, ARM, and more. It features a pull-down circuit to avoid malfunction, power supply indicator lamp, control indicator lamp, and relay output status indicator. The module allows for the control of various appliances and equipment with large current requirements. It operates on standard TTL level logic, making it suitable for use with AVR, Arduino, 8051, PIC, ARM, and other controllers. The board is designed to comply with international safety standards, with isolation trenches between control and load areas.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
