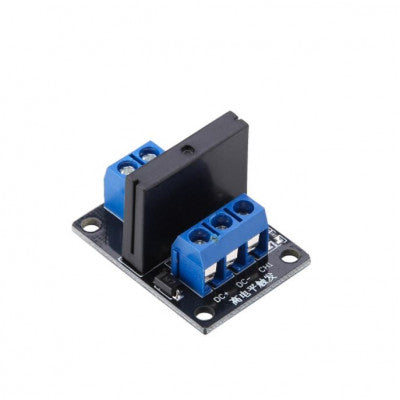

1 Channel 5V Solid State Relay Module
A solid-state relay (SSR) for controlling high-voltage AC loads with low-voltage DC circuitry.
- Part Number: G3MB-202P
- Power supply: 5VDC/160mA
- Switching Voltage (VAC): 240@2A
- Isolation: Phototriac
- Zero Cross: Yes
- Length (mm): 35
- Width (mm): 25
- Height (mm): 24
- Weight (gm): 10
Features:
- 1-channel 2 AMP Solid State Relay board
- Control 1 load of up to 2 amps each at 240 V AC
- Good for lighting, Holiday displays, etc
- Assembled and electrically tested
A Solid State Relay is similar to 1 Channel 5V Relay Module Solid State High-Level SSR DC Control 250V 2A with Resistive to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan compared to the traditional mechanic relay. When the input logic voltage is applied to the coil, the NC will disconnect from the COM breaking the conductivity between the two. At the same time, the NO will connect with the COM allowing conductivity between them. Depending on your wiring this will turn on or off the connected load.
Input Parts: DC+: connected to VCC (Supply power according to relay voltage) DC-: connected to GND CH1: relay module signal trigger point (Effective high-level trigger)
Use it to control various appliances and other equipment with a large current. It can be controlled directly by a Microcontroller.
* Images are for illustration only; actual product may vary.
