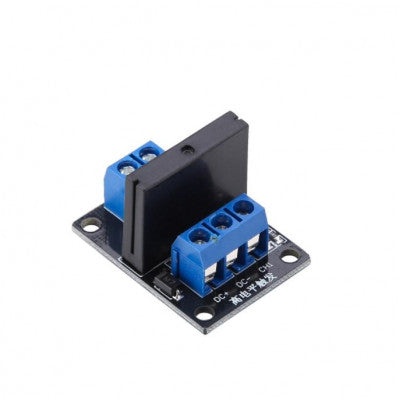

Ingenex 3-24VDC 50V Solid State Relay 2A
Reliable solid state relay with resistance type fuse for low-level DC control.
- Operating Voltage (VDC): 3 ~ 24
- Supply Current (A): 2mA
- Switching Voltage (VAC): 50 @ 2A
- Operating Temperature (C): -40 to 85
- Opt. Relative Humidity (RH): 20% - 85%
- Storage Condition: 65 to 125
- Length (mm): 34
- Width (mm): 26
- Height (mm): 22
- Weight (gm): 10
Top Features:
- Low-level trigger for precise control
- Blue KF301 terminal for easy connection
- Compact size for versatile applications
The Ingenex 3-24VDC 50V Solid State Relay 2A is designed for low-level DC control applications. It features a resistance type fuse for added safety and reliability. The relay module operates at an input control signal voltage of 3-24V, with the relay turning OFF at 0-2.5V and ON at 3-24V.
Low-level trigger functionality allows for easy signal triggering, making the relay module efficient and user-friendly. The blue KF301 terminal simplifies the control line connection process, ensuring a hassle-free setup.
With its compact dimensions of 34mm x 26mm x 22mm and lightweight design of 10g, this solid state relay is suitable for various electronic projects and applications. The operating temperature range of -40 to 85 degrees Celsius and optimal relative humidity of 20% to 85% make it ideal for diverse environmental conditions.
The package includes 1 x 1 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse, providing everything you need for seamless integration into your project.
*Images are for illustration only; actual product may vary.
