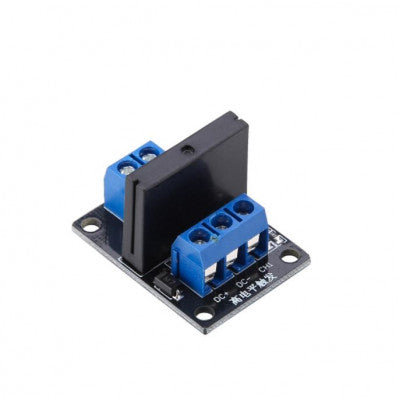

Ingenex 3-24VDC 50V Solid State Relay 2A
Reliable solid state relay with 2A output and resistance type fuse
- Operating Voltage (VDC): 3 ~ 24
- Supply Current (A): 2mA
- Switching Voltage (VAC): 50@2A
- Operating Temperature (C): -40 to 85
- Opt. Relative Humidity(RH): 20% - 85%
- Storage condition: 65 to 125
- Length (mm): 34
- Width (mm): 26
- Height (mm): 22
- Weight (gm): 10
Top Features:
- 3-24VDC operating voltage
- 2A output current
- Resistance type fuse for safety
- High-level trigger signal
The Ingenex 3-24VDC 50V Solid State Relay 2A is a reliable relay module with a 1 channel design. It operates with an input control signal voltage range of 3-24V, where a low-level signal turns the relay off and a high-level signal turns it on. The relay is triggered by a positive electrode connected to the trigger terminal (IN) and the negative power supply. The blue KF301 terminal is used for control line connection.
Package Includes: 1 x 1 Channel 3-24V Relay Module Solid State High-Level SSR DC Control DC with Resistive Fuse
Images are for illustration only; actual product may vary.
