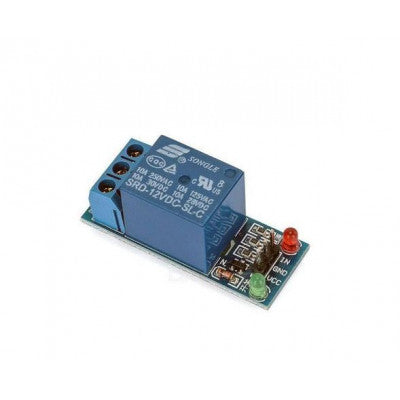

12V 1 Channel Relay Board
A small and easy-to-use relay board for controlling 240V appliances
- Trigger Voltage (VDC): 12
- Trigger Current (mA): 20
- Switching Voltage (VAC): 250 @ 10A
- Switching Voltage (VDC): 30 @ 10A
- Operating Temperature (C): -40 to 85
- Opt. Relative Humidity(RH): 20% - 85%
- Storage condition: -65 to 125
- Length (mm): 48
- Width (mm): 29
- Height (mm): 17
- Weight (gm): 15
Top Features:
- High-quality relay for 10A/250V AC or 15A/125V AC
- Easy connection with 3 pin screw terminals
- Power indication and relay status LED
- Wide range of control input voltage (4V to 12V)
Use this 1 channel relay board to easily control 240V power appliances directly from Arduino, Raspberry Pi, and other microcontrollers. It is perfect for switching lights, fans, and high-power motors at lower voltages. The board comes with a high-quality relay that can handle up to 10A/250V AC or 15A/125V AC. With clear markings for Common, Normally Open, and Normally Closed connections on the screw terminals, making and removing connections is a breeze. The board also features power indication and relay status LEDs for easy debugging. Control inputs within a wide voltage range of 4V to 12V can be accepted, and the power input and relay control signals are conveniently brought to header pins for easy interfacing with development boards using female to female jumper wires.
* Images are for illustration only; actual product may vary.
