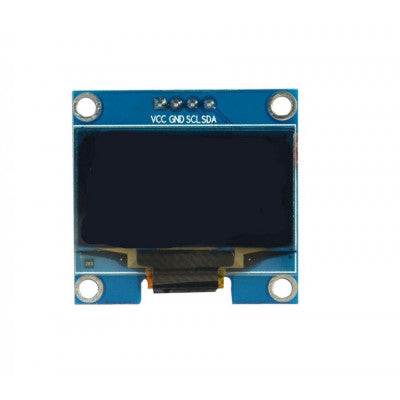

1.3 Inch I2C OLED Display
An ultra-small OLED monochrome display module with I2C Interface
- Display Size: 1.3 inch
- Resolution: 128 x 64 Pixels
- Controlling Chip: SSH1106
- Display Area: 34.5 x 19mm
- Driving Voltage: 3.3-5V
- Operating Temperature: -40~70 Celsius
- Interface Type: IIC
- Pixel Color: White
- Length (mm): 35.5
- Width (mm): 33.5
- Height (mm): 4
- Weight (gm): 7
Top Features:
- High brightness and contrast ratio
- Self-emission for better visibility
- Slim outline design
- Wide viewing angle
This OLED Display is perfect for projects requiring a compact display solution. OLED screens offer advantages over LCD, including high brightness, self-emission, and low power consumption. It is compatible with various microcontrollers like Arduino.

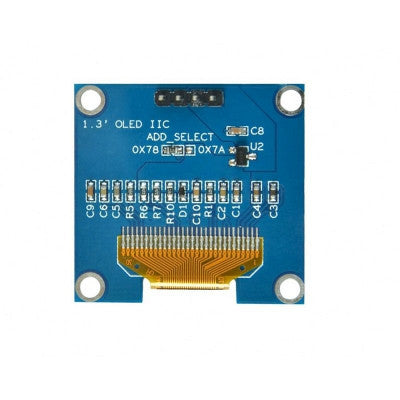

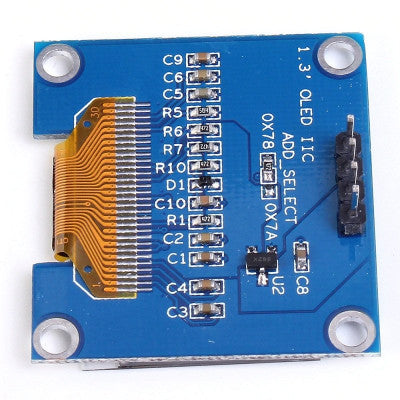

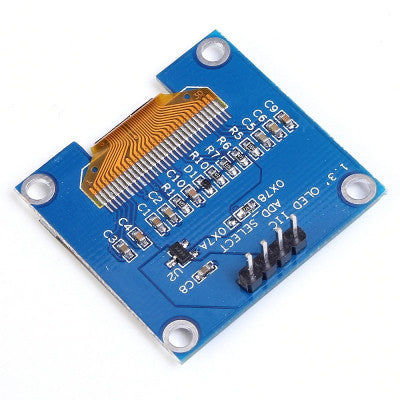

Pin Definition:
- GND: Power ground
- VCC: Power positive
- SCL: Clock wire
- SDA: Data wire
Package Includes: 1 x 1.3 Inch I2C IIC 128x64 OLED Display Module 4 Pin - White
Images are for illustration only; actual product may vary.
