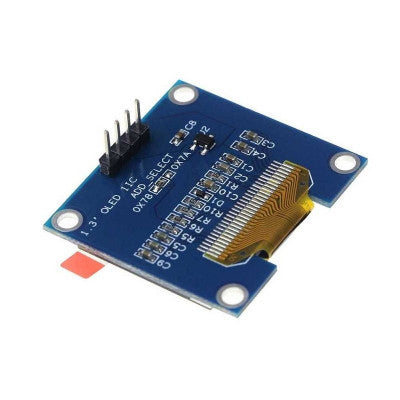

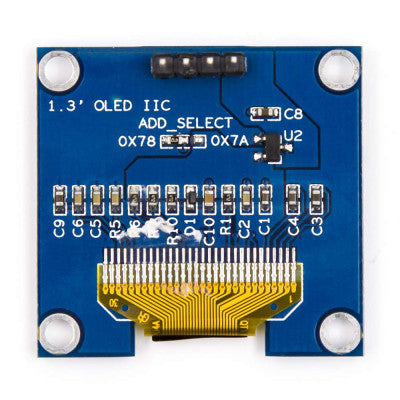

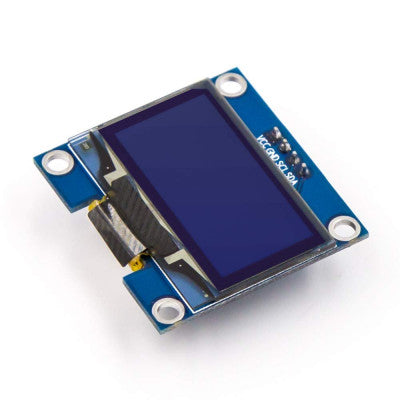

1.3 Inch Blue OLED Display Module
A high-resolution OLED display module with SPI/IIC interface for easy microcontroller integration.
- Operating Voltage: 3.3V-5V DC
- Interface type: IIC interface
- High Resolution: 128 x 64
- Driver IC: SH1106
- Display Area: 29.42 x 14.7mm
- Operating temperature: -40 to 70°C
- Length (mm): 35.5
- Width (mm): 33.5
- Height (mm): 3
- Weight (gm): 6
Features:
- Requires only 2 I/O ports for control
- Pixel Color options: Yellow (128x16 pixels), Blue (128x48 pixels)
- Fully compatible with Arduino
- Working temperature range: -30°C to 70°C
The 1.3 inch Blue OLED Display Module is a self-emitting technology that eliminates the need for a backlight, making it ideal for various display applications. Its organic structure and high resolution make it a top choice for next-gen displays.
The package includes the display board, OLED display, and a 4-pin male header pre-soldered for easy setup. The OLED's basic structure, composed of organic materials and specific layers, ensures efficient electron-hole combination for vivid electro luminescence.

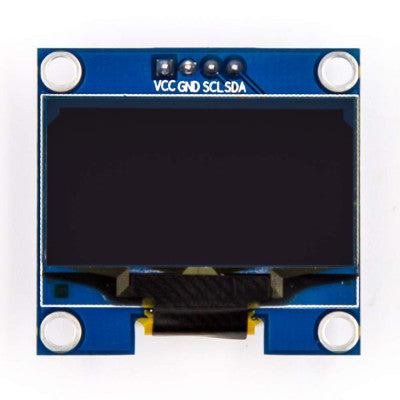

Pin Details: GND (power ground), VCC (positive power supply), SCL (clock line), SDA (data line)
Package Includes: 1 x 1.3 Inch I2C IIC OLED LCD Module 4 Pin-Blue
*Images are for illustration only; actual product may vary.*
