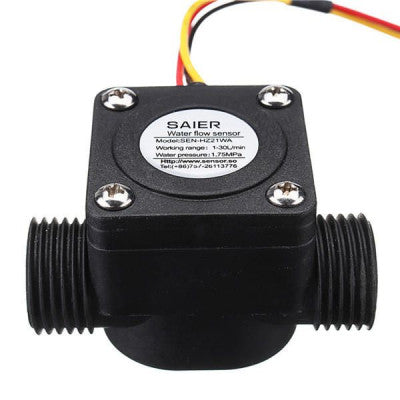

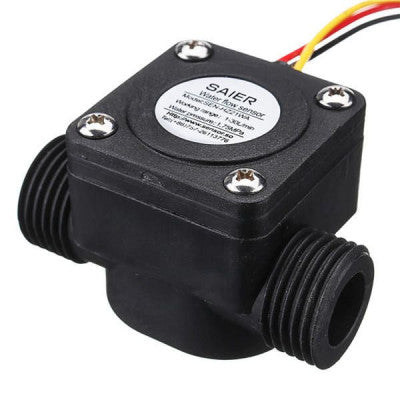

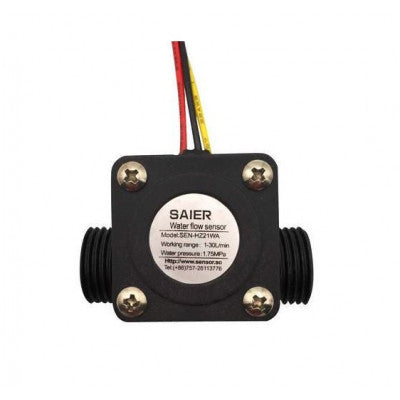

1/2 inch Water Flow Sensor - SEN-HZ21WA
Measure liquid flow rate with ease using this digital flow sensor.
- Model: SEN-HZ21WA
- Test range: 1~30L/min(m³/h)
- Connect way: 57.8 X 37 X 37 (in mm) outside diameter: 1/2 inch
- Instantaneous flow pulse characteristics: F=[10Q]±10%, F means instantaneous pulse value(Hz), Q means instant flow
- Max. Working current: 15mA
- Insulativity: insulation resistance?100M?
- Use voltage: DC 5V
- Fit media: Water
- Working pressure: 1.75MPa
- Linearity: 0.01(%F.S.)
- Output signal: Moder
- Hysteresis: 0.01(%F.S.)
Top Features:
- Easy to connect to microcontrollers
- No extra circuit required
- Great for water testing and cooling systems
- Accurate measurement of liquid flow

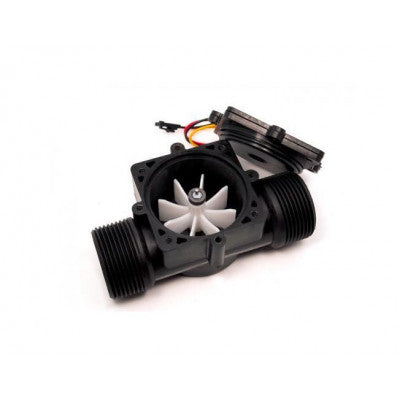

Use this flow sensor to measure the rate of flow of liquids effortlessly. The sensor features a digital interface for easy connection to microcontrollers like Arduino or Raspberry Pi. Simply attach the sensor to the liquid line to be measured, and the pinwheel inside the sensor will rotate as the liquid flows through. The hall effect sensor detects the pinwheel rotation and outputs a digital pulse for each rotation, allowing you to easily monitor liquid flow. The sensor includes three wires - Red (5V-12V), Black (Ground), and Yellow (Output pulse).
This sensor is ideal for various applications such as water testing, water cooling systems, and measuring liquid flow. It provides accurate and reliable results without the need for additional circuits.
* Images are for illustration only; actual product may vary.
