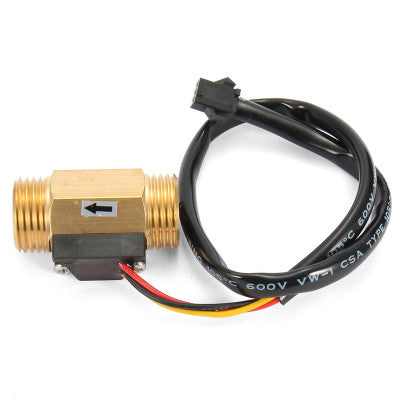

1/2" Brass Water Flow Sensor
Measure liquid flow easily with this high-quality brass water flow sensor.
- Model: SEN-HZ21WI
- Water quality requirement: Drinking water health standards, 0-80?
- Flow range: 1-30 Liter/min
- Withstand hydraulic pressure: ?1.75 MPa
- Voltage/electric current: DC4.5-18V, ?15mA
- Insulation resistance: >100M?
- Electrical strength: AC500V, 50HZ
- Output level: Rated voltage DC 5 Volt, high level ?4.5 Volt, low level ? 0.5 Volt
- Pulse duty cycle: 50%
- Flow characteristic: F=10 Q-4, F:HZ, Q:L/min ±10%
- Cumulative flow conversion: 1 Liter water = 553 pulses, accuracy: 10%
Top Features:
- Brass body for durability
- Simple rotating wheel design
- Easy to install and use
- 3 pin JST connector included
This half-inch water flow sensor is ideal for industrial and commercial applications, commonly used in various vending machines. It is connected in line with the liquid to measure the flow rate. The sensor features a rotating wheel with a magnet, and a hall effect sensor measures the rotations to provide accurate flow data.
The sensor is suitable for applications requiring a flow range of 1-30 Liter/min and can withstand hydraulic pressure up to 1.75 MPa. It operates on DC4.5-18V voltage with a current of ?15mA. The output signal is transmitted through a 3 pin JST connector with color coding for easy identification.
Widely used in the water industrial field, this sensor is suitable for thermostatic water heaters, water purifiers, water dispensers, smart card equipment, coffee machines, and more. Please note that the sensor's characteristics may vary when in close proximity to magnetic materials. To ensure accurate measurements, install the sensor after a filter and avoid strong vibrations.
