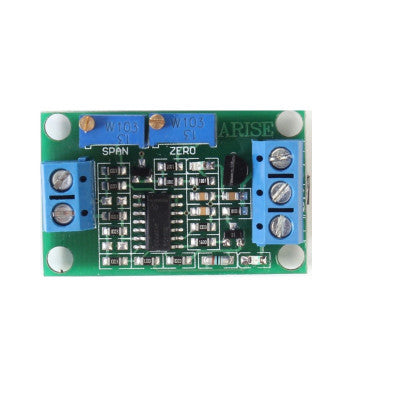

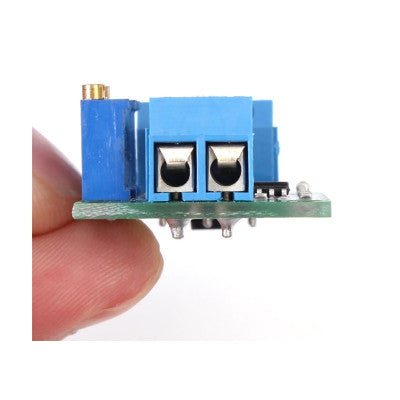

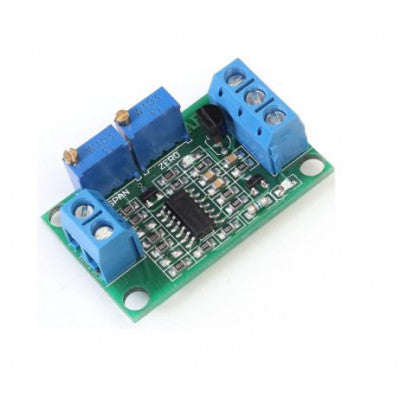

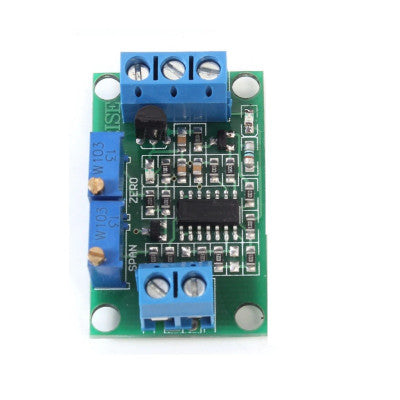

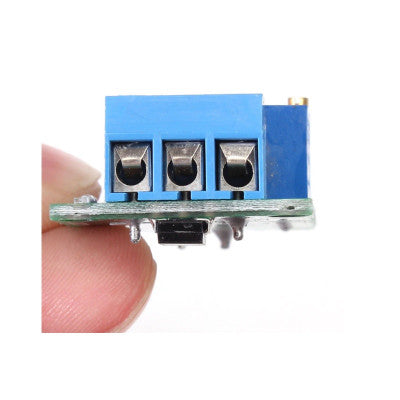

0-5V to 4-20MA Voltage-to-Current Module
Convert voltage into current for signal transmission
- Power Supply: DC 7-30 V
- Input Voltage: 0-10V
- Output Current: 4-20mA
- Drifting Temperature: +/- 100ppm
- Ambient Temperature: -10 ~ 60
- Storage Temperature: -20 ~ 85
- Relative Humidity: 10-90% RH
- Air Pressure: 86-106Kpa
Top Features:
- Wide supply voltage range
- Adjustable zero and range
- High stability and good linearity
- Industrial grade
The module is used to convert voltage into current for signal transmission. In the process of circuit signal transmission, the voltage signal weakens with the transmission distance. Using current transmission can avoid signal weakening. This module is ideal for the end of current signal transmission, converting the signal into a voltage signal for single-chip detection. Current input supports 4-20mA, 0-20mA, and voltage output supports 0-3.3V, 0-5V, 0-10V.
Current signal sampling resistor with high precision color ring resistance, high precision, small temperature drift, and high power.
* Images are for illustration only; actual product may vary.
