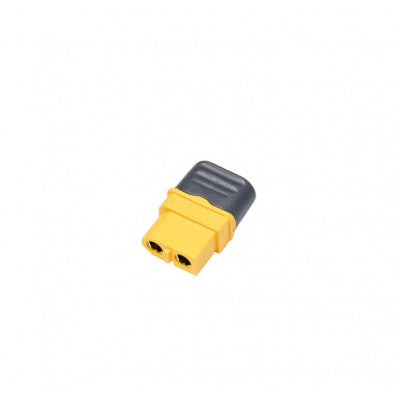

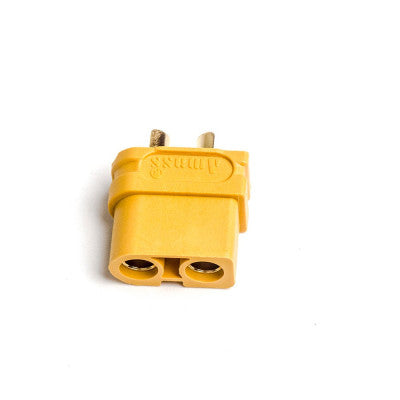

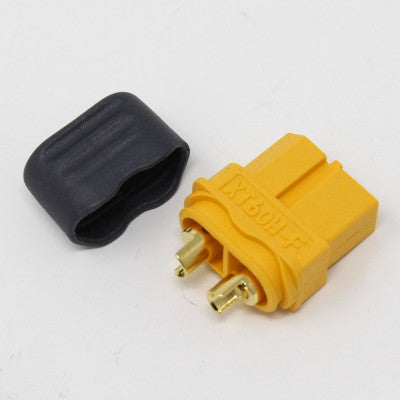

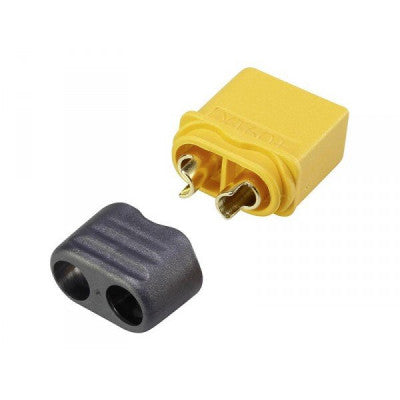

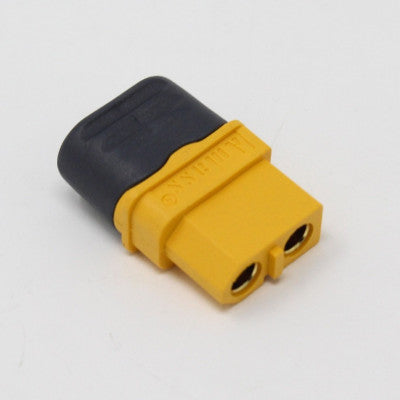

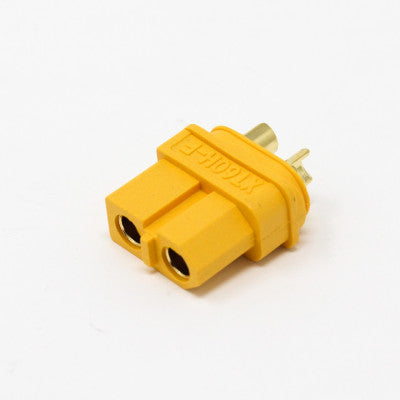

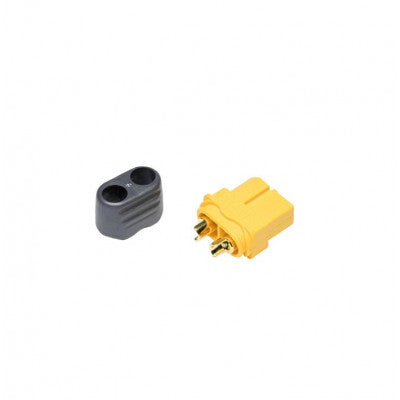

XT60H Battery Connector
The XT60H connector offers improved design and functionality for high-amp applications.
- Brand: Amass
- Gender: Female
- Rated Operating Voltage (VDC): 500
- Current Handling Capacity (A): 60
- No. of Contact Points: 2
- Connector Type: XT60H
- Contact Material: Brass
- Contact Plating: Gold flash
- Metal Connector Size (mm): 4.5
- Color: Yellow-Gray
- Weight (gm): 8
- Operating Temperature Range (°C): -20 to 120
- Flammability Rating: UL94V-0
- Allowed Wire Size (AWG): 14 ~ 12
Features:
- Mechanical mounting for cable
- Electrical mounting soldered
- Contact plating Gold flash
- Spatial Orientation Straight
The best battery connectors on the market just got better with the development of the XT60H. Made from high-temp nylon with gold plated connectors, the XT60H provides an excellent high-amp connection for applications up to 65A. The design change has made it shorter, lighter, and more user-friendly for connection and disconnection, with an improved integrated grip area and tight locking housing with different colors providing protection to the soldered points. The H letter is added in XT60 to add a touch of style.
The XT60H is completely compatible with original XT60 connectors, allowing for immediate use.
- Package Includes: 1 x XT60H Connector with Housing- Female
Images are for illustration only; actual product may vary.
