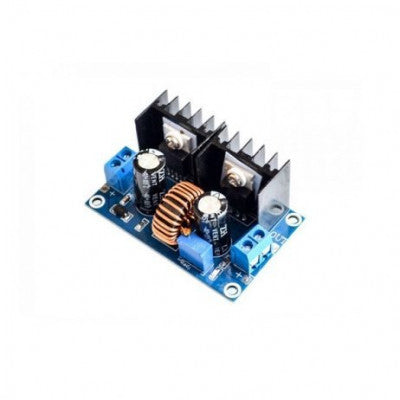

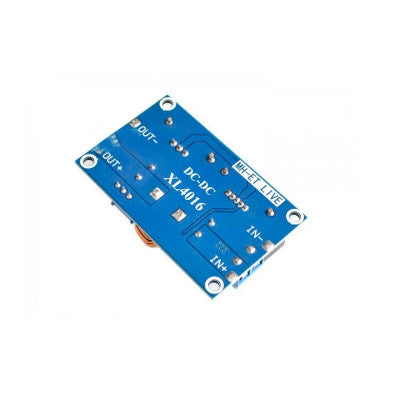

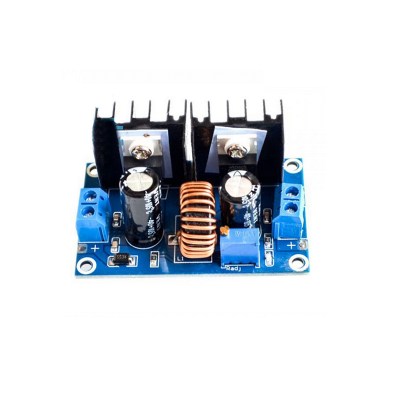

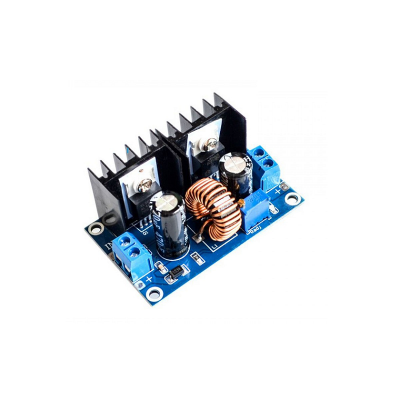

XL4016E1 200W Step-Down Power Supply Module
Efficient step-down power supply module with a wide input voltage range
- Input Voltage: 4 to 40VDC
- Output Voltage: 1.25 to 36VDC
- Max Current: 8A
- Maximum Power: 200W
- Efficiency: 94%
- Switching Frequency: 180KHz
- Length: 61mm
- Width: 41mm
- Height: 27mm
- Weight: 51gm
Top Features:
- Wide input voltage range (4-40V)
- Output voltage adjustable from 1.25-36V
- Maximum power of 200W
- Efficiency rating of 94%
This XL4016E1 200W Step-Down Power Supply Module is designed to efficiently convert voltages from 4-40VDC to 1.25-36VDC. It has a maximum power rating of 200W and can handle a maximum current of 8A. The module features short circuit protection, current limiting, and thermal protection for safe operation.
The adjustment method for this module involves setting the correct input power and then using a multimeter to monitor and adjust the output voltage using the potentiometer. The connection can be done through welding, and the module supports direct soldering onto the PCB. The potentiometer adjustment direction is clockwise for increase and anti-clockwise for decrease.
With a static power consumption of only about 6mA, this non-isolated step-down (BUCK) switching regulator is efficient and reliable. It also features non-synchronous rectification for improved performance.
Package Includes: 1 x XL4016E1 200W Step-Down Power Supply Module
* Images are for illustration only; actual product may vary.
