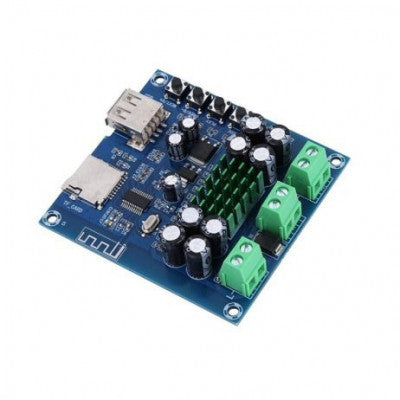

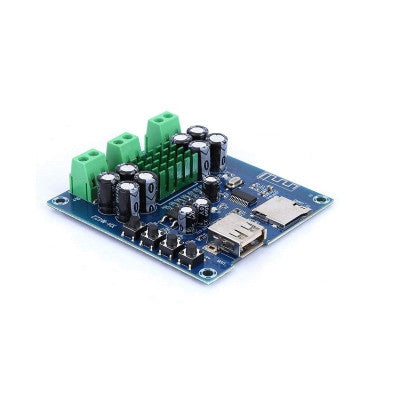

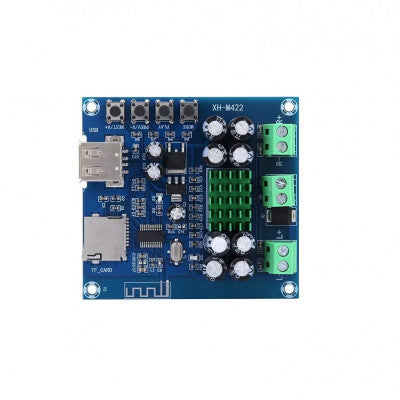

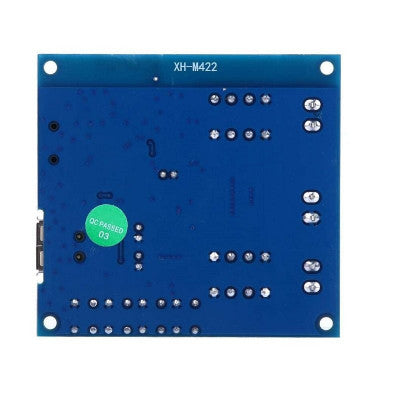

TPA3116D2 XH-M422 Dual Channel Digital Power Amplifier Board
A high-efficiency class D audio power amplifier with TPA3116D2 core technology.
- Operating Voltage Range: 12 to 24 VDC
- OutPut Power: 2x50W
- Signal to Noise Ratio: 100db
- Length: 73 mm
- Width: 68 mm
- Height: 16 mm
- Weight: 42 gm
Features:
- Strong TPA3116D2 chip for low idle loss
- Front-facing IC for improved input sensitivity
- Onboard Bluetooth Receiver
- Can be used for various audio setups
This newly designed digital audio amplifier board, the TPA3116D2 XH-M422, is practical to install and use. It features a high-efficiency class D audio power amplifier with the latest TPA3116D2 core technology, providing excellent performance. The amplifier board uses a double power supply transformer with a dynamic power supply range from 12V to 24V, ensuring high efficiency and small quiescent current. Additionally, it comes with perfect protection functions such as overvoltage protection and output current limit.
Note: This product is available in two different variants (XH-M422 and HW-428) with the same functionality; we will ship it randomly.
This product is suitable for various applications, including car audio systems, computer speakers, home audio and video setups, and public address systems. It delivers loud sound with excellent sound quality, thanks to its large capacitance. The absence of solder joints on the back of the circuit board ensures a reliable and safe operation.
* Images are for illustration only; actual product may vary.
