PPTC (Polymer Positive Temperature Coefficient) Fuse 60V 300mA
PPTC devices with resettable overcurrent protection
- Brand: WEITE
- Hold Current: 300mA
- Maximum Voltage: 60V
- Mounting Type: SMD 1812
- Fuse Type: SMD
Top Features:
- Compact design saves board space
- RoHS compliant and lead-free
- Halogen-free
- Fast response to fault current
PPTC Fuses are ideal for situations where frequent overcurrent conditions occur or constant uptime is required. Resettable PTCs (PPTCs) are typically used in consumer electronics, power line, telecom, I/O port, process control, and medical equipment protection applications. They increase resistance as temperature increases due to increased flow, designed to limit unsafe currents while allowing constant safe current levels. Resistance will "reset" automatically when the fault is removed and temperature returns to safe levels.
Applications:
- USB port protection - USB 2.0, 3.0 & OTG
- HDMI 1.4 Source protection
- PDAs / digital cameras
- Game console port protection

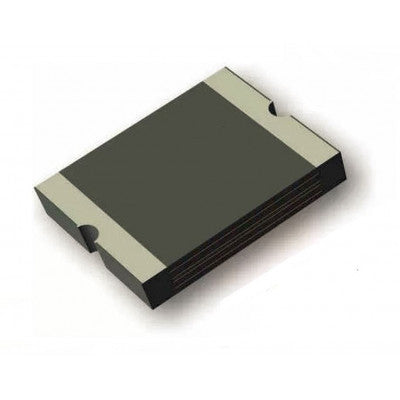

Package Includes: 1 x WT1812-030/60 60V 300mA Weite (1812 SMD) PPTC Resettable Fuse
Images are for illustration only; actual product may vary.
