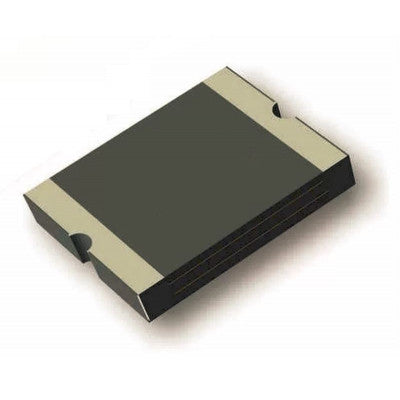

PPTC (Polymer Positive Temperature Coefficient) Fuse 24V 500mA
PPTC devices with resettable overcurrent protection
- Brand: WEITE
- Hold Current: 500mA
- Maximum Voltage: 24V
- Mounting Type: SMD 1206
- Fuse Type: SMD
Features:
- Compact design saves board space
- RoHS compliant and lead-free
- Halogen-free
- Fast response to fault current
Applications:
- USB port protection - USB 2.0, 3.0 & OTG
- HDMI 1.4 Source protection
- PDAs / digital cameras
- Game console port protection
This PPTC Fuse is ideal for situations where frequent overcurrent conditions occur or constant uptime is required. Resettable PTCs (PPTCs) are typically used in consumer electronics, power line, telecom, I/O port, process control, and medical equipment protection applications. PPTC Fuses increase resistance as temperature increases due to increased flow. They are designed to limit unsafe currents while allowing constant safe current levels. The resistance will "reset" automatically when the fault is removed and temperature returns to safe levels.
