PPTC (Polymer Positive Temperature Coefficient) Fuse 6V 350mA
Resettable overcurrent protection for reduced warranty and repair costs
- Brand: WEITE
- Hold Current: 350mA
- Maximum Voltage: 6V
- Mounting Type: SMD 1206
- Fuse Type: SMD
Top Features:
- Compact design saves board space
- RoHS compliant and lead-free
- Halogen-free
- Fast response to fault current
PPTC Fuses are ideal for situations with frequent overcurrent conditions or requiring constant uptime. They are commonly used in consumer electronics, power line, telecom, I/O port, process control, and medical equipment protection applications. These fuses increase resistance as temperature rises, limiting unsafe currents while allowing safe current levels. The resistance resets automatically when the fault is removed and temperature returns to safe levels.
Applications:
- USB port protection - USB 2.0, 3.0 & OTG
- HDMI 1.4 Source protection
- PDAs / digital cameras
- Game console port protection

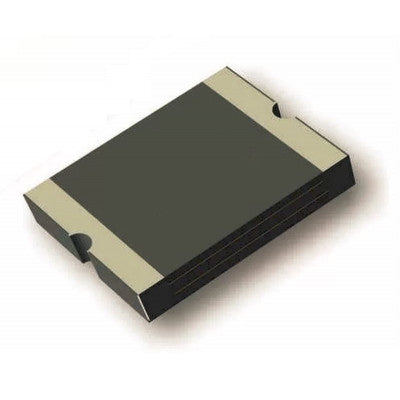

Package Includes: 1 x WT1206-035 6V 350mA Weite (1206 SMD) PPTC Resettable Fuse
Images are for illustration only; actual product may vary.
