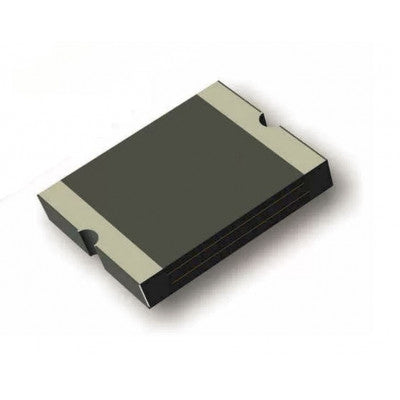

PPTC (Polymer Positive Temperature Coefficient) Fuse 16V 250mA
PPTC devices with resettable overcurrent protection
- Brand: WEITE
- Hold Current: 250mA
- Maximum Voltage: 16V
- Mounting Type: SMD 0603
- Fuse Type: SMD
Top Features:
- Compact design saves board space
- RoHS compliant and lead-free
- Halogen-free
- Fast response to fault current
PPTC Fuses are ideal for situations where frequent overcurrent conditions occur or constant uptime is required. They increase resistance as temperature rises, limiting unsafe currents while allowing safe current levels. The resistance will automatically reset when the fault is removed and temperature returns to safe levels.
Applications:
- USB port protection - USB 2.0, 3.0 & OTG
- HDMI 1.4 Source protection
- PDAs / digital cameras
- Game console port protection
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
