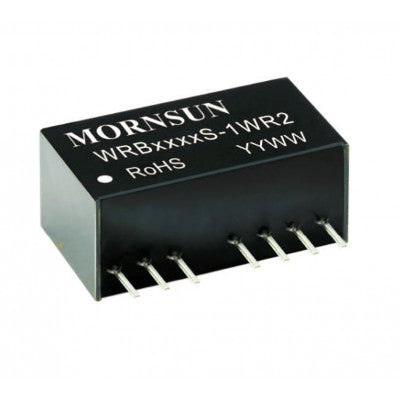

WRB2424S-1WR2 Mornsun 24V to 24V DC-DC Converter 1W Power Supply Module
Isolated 3W DC-DC converter with 2:1 input voltage and conventional output
- Input Voltage Range: 18-36V
- Nominal Voltage: 24V
- Output Voltage: 24V
- Output Current: 42/2mA
- Wattage: 1W
- Isolation: 1.5kVDC
- Package: SIP
Top Features:
- Ultra compact SIP package
- Wide input voltage range (2:1)
- Operating temperature range: -40°C to +85°C
- Isolation voltage: 1.5kVDC
The WRB2424S-1WR2 series is an isolated 3W DC-DC product with a 2:1 input voltage and conventional voltage output. It comes in a relatively compact SIP-8 plastic package and features high efficiency, operating temperature of -40°C to +85°C, remote control, and continuous short-circuit protection. The smaller size and cost-effective design make this converter an ideal solution for communication, instruments, and industrial electronics applications.
Package Includes:
1 x WRB2424S-1WR2 Mornsun 24V to 24V DC-DC Converter 1W Power Supply Module - Ultra Compact SIP Package
Images are for illustration only; actual product may vary.
