WRB2412S-3WR2 Mornsun 24V to 12V DC-DC Converter
Isolated 3W DC-DC converter with 2:1 input voltage and high efficiency
- Input Voltage Range: 18-36V
- Nominal Voltage: 24V
- Output Voltage: 12V
- Output Current: 250/13mA
- Wattage: 3W
- Isolation: 1.5kVDC
- Package: SIP
Features:
- Ultra compact SIP package
- Wide 2:1 input voltage range
- Operating ambient temperature range: -40°C to +85°C
- I/O isolation test voltage: 1.5kVDC
The WRB2412S-3WR2 series is an isolated 3W DC-DC product with a 2:1 input voltage and conventional voltage output. It comes in a relatively compact SIP-8 plastic package and features high efficiency, operating temperature of -40°C to +85°C, remote control, and continuous short-circuit protection. The smaller size and cost-effective design make it an ideal solution for communication, instruments, and industrial electronics applications.
Package Includes:

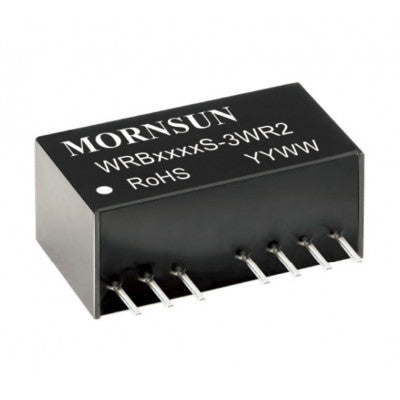

1 x WRB2412S-3WR2 Mornsun 24V to 12V DC-DC Converter 3W Power Supply Module - Ultra Compact SIP Package
* Images are for illustration only; actual product may vary.
