2 in 1 Solar Power Manager (C)
Build your own power bank with this 2 in 1 Solar Power Manager (C) from Waveshare.
- Solar Input Range (VDC): 6V ~ 24V (18V by default)
- Compatible Battery Size: 3x 18650 Li-ion battery (NOT included)
- USB Input: 5V (TYPE-C, with PD quick charge support)
- Output Port: 5V / 3A (USB-OUT, TYPE-C)
- Recharge Cut Off Voltage: 4.2V
- Over Discharge Protection: 3.0V
- Operating Temperature Range (C): -30 to 85

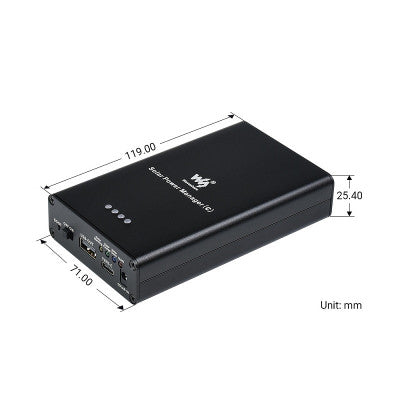

- Length (mm): 119
- Width (mm): 71
- Height (mm): 25
- Weight (gm): 175
Features:
- MPPT function for maximizing solar panel efficiency
- Flexible battery recharging from solar panel or USB TYPE-C
- Compatible with 6V~24V solar panels
- Onboard MPPT SET switch for improved recharging efficiency

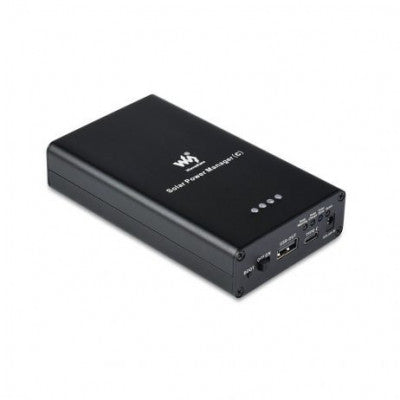

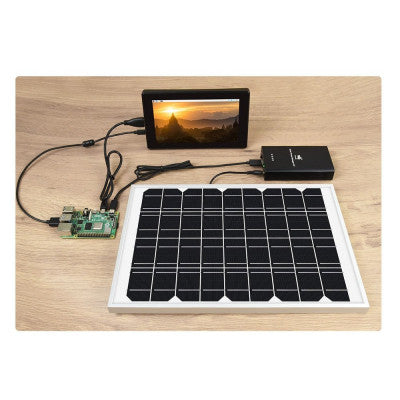

This completely assembled PB in a strong aluminum case with a stylish look is compatible with dynamic 6V~24V solar panels inputs. It can recharge the 3 x 18650 rechargeable Li-ion batteries through a solar panel or via a USB TYPE-C port by any 5V DC power adapter. On the output side, it provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP) which can charge the Mobile phone in a fast-charging Mode @15W. The module features MPPT (Maximum Power Point Tracking) function and multi-protection circuits, therefore, it is able to keep operating with high efficiency, stability, and safety. It is suitable for solar-powered, low-power IoT, and other environmental protection projects.

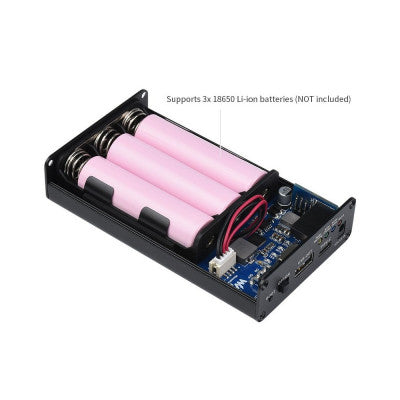

Note: This Power Bank is compatible with 3 x 18650 Lithium-ion cells. (Not included in Package)
Recommended Cell for High-Quality performance:
- PANASONIC NCR18650B 3400mAh (1c) LI-ION BATTERY
- LG INR18650MJ1 3500mAh (3c) LI-ION BATTERY
- LG INR18650MH1 3200mAh (3c) LI-ION BATTERY
Package Includes:
- 1 x Waveshare Solar Power Manager (C) Case
- 1 x DC-002 connector to connect the solar panel output
- 1 x Screw Driver fitting screws
* Images are for illustration only; actual product may vary.
