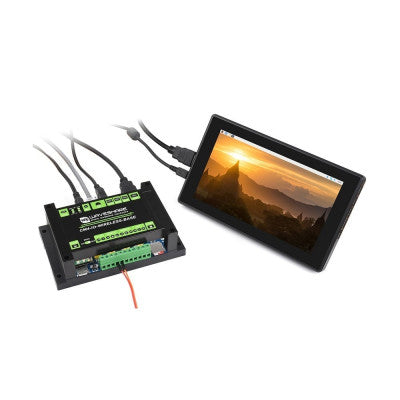

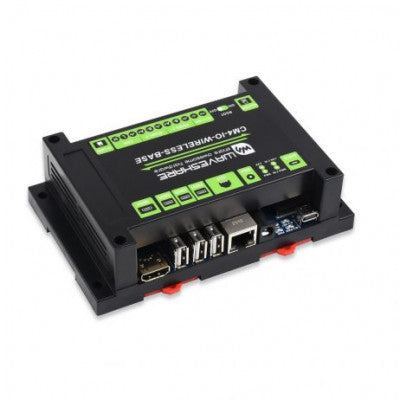

Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi Compute Module 4
An industrial expansion module for Raspberry Pi CM4 with various wireless communication options

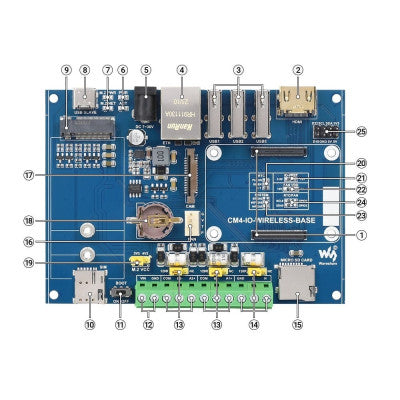

- CM4 SOCKET: suitable for all variants of Compute Module 4
- NETWORKING: Gigabit Ethernet RJ45
- M.2 B KEY / Mini-PCIe: for connecting 5G / 4G / LoRa wireless module
- Nano-SIM card slot: supports standard Nano-SIM card for 5G/4G/3G/2G communication
- USB: 2.0
- 3PIN HEADER: Non-isolated RS485 2, Non-isolated CAN 1, Partial GPIO pins
- CAMERA MIPI: CSI-2 1 (15pin 1.0mm FPC connector)
- VIDEO HDMI: 1, supports 4K 30fps output
- RTC: Real-time clock with a battery socket and ability to wake Compute Module 4
- STORAGE: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
- FAN HEADER: 5V/12V, allows speed adjustment and measurement
Top Features:
- CM4 SOCKET for Compute Module 4
- Gigabit Ethernet RJ45
- M.2 B KEY / Mini-PCIe for wireless modules
- Supports Nano-SIM card for wireless communication
This industrial IoT wireless expansion module is designed for various applications including IoT gateway, 4G/5G router, IoT data acquisition, and PLC devices in industrial control systems. It offers interfaces like RS485, CAN, and RTC for industrial use.
Package Includes:
- 1 x Waveshare Industrial IoT Wireless Expansion Module Kit
- Kit Includes:
- 1 x CM4-IO-WIRELESS-BASE
- 1 x PCIe to 4G/LoRa adapter
- 1 x Screwdriver
- 1 x Screws pack
- 1 x SIM7600G-H-PCIE
- 1 x PCB antenna IPEX connector
Useful link: To do Hardware and Software setup, please follow this tutorial.
* Images are for illustration only; actual product may vary.
