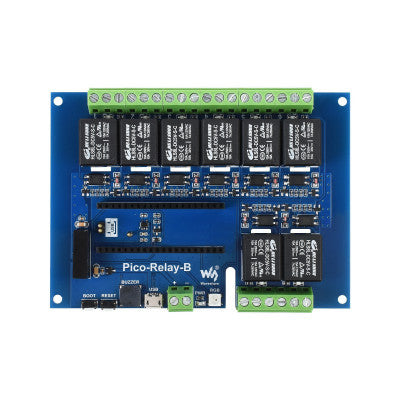

Waveshare Industrial 8-Channel Relay Module for Raspberry Pi Pico
Industrial-grade relay module with embedded protection circuits and ABS enclosure

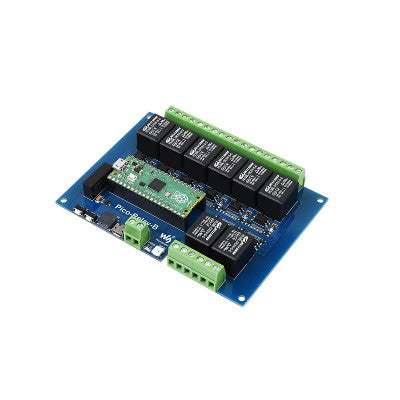

- On Board: Raspberry Pi Pico header
- On Board: Relay screw terminal for connecting external devices
- On Board: Power supply screw terminal for multi relays connected in parallel
- On Board: Pogo pins for USB communication port
- On Board: Pogo pins for BOOT key
- On Board: Reset key for Pico reset
- On Board: Passive buzzer with controllable sound frequency
- On Board: Power indicator
- On Board: WS2812 RGB LED
- 8-channel quality relays contact rating per channel: 10A 250V AC or 10A 30V DC
- Relay operating indicator
- Photocoupler isolation prevent interference from external high-voltage circuits connected to the relay
- Power supply isolation provides stable isolated voltage, needs no extra power supply for the isolated terminal

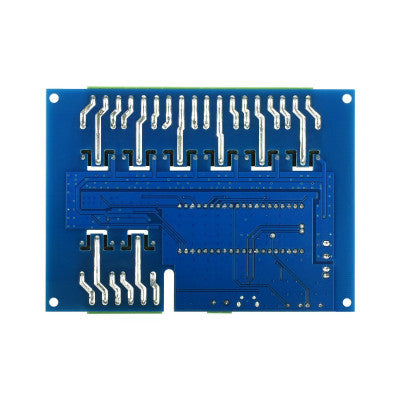

- Thickened tracks allow large current devices
Features:
- Unibody power supply isolation
- Photocoupler isolation
- High-quality relay, contact rating: 10A 250V AC or 10A 30V DC

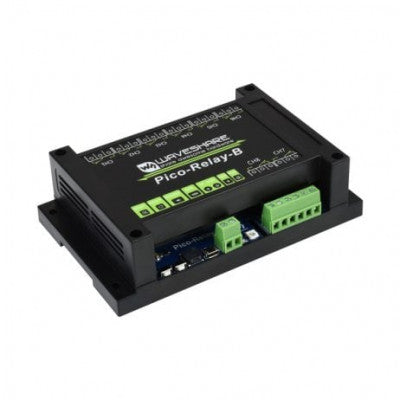

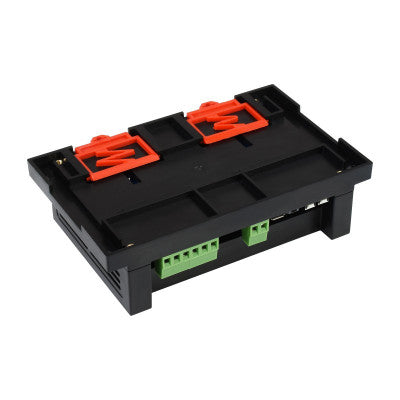

- ABS protection enclosure with rail-mount support
Note: Raspberry Pi Pico is not included in this package.
Package Includes:
- 1 x Waveshare Industrial 8-Channel Relay Module for Raspberry Pi Pico, Multi-Protection
* Images are for illustration only; actual product may vary.
