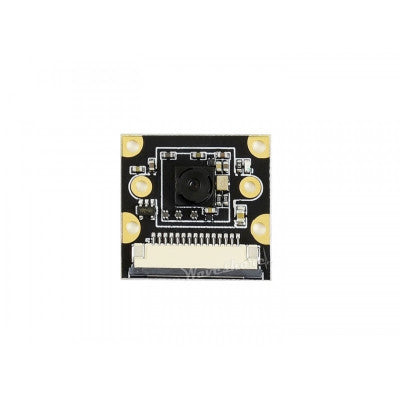

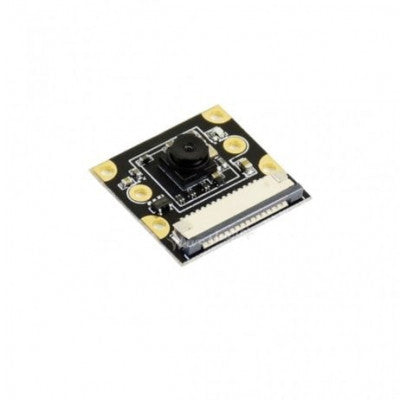

IMX219-120 Camera
8 Megapixels, 120 FOV Camera Compatible with Jetson Nano
- Resolution: 8 Megapixels
- Field of View: 120 degrees
- Compatibility: Jetson Nano, CM3/CM3+ expansion boards
- Supported Boards: Compute Module IO board, Compute Module IO Board Plus, Compute Module POE Board of Waveshare, Stereo Pi board
- Driver: libcamera (Raspicam instructions available)
Top Features:
- Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
- 8 Megapixels Sensor: IMX219
- 120-degree Field of View
After the Bullseye version of the Raspberry Pi image, the underlying Raspberry Pi driver was switched from Raspicam to libcamera. libcamera is an open-source software stack (will be called driver later, which is easy to understand), which is convenient for third-party porting and development of their own camera drivers. As of 2021-12-20, there are still many bugs in libcamera, and the current libcamera does not support python, so the Raspberry Pi official still provides a method for installing and downloading Raspicam. For users who are difficult to switch to libcamera but need to use the latest system, please directly refer to the Raspicam instructions.
Useful link: For Software setup, please follow this tutorial.
- Package Includes: 1 X IMX219-120 Camera, 1 X 15-pin FFC (opposite sides contact)
Images are for illustration only; actual product may vary.
