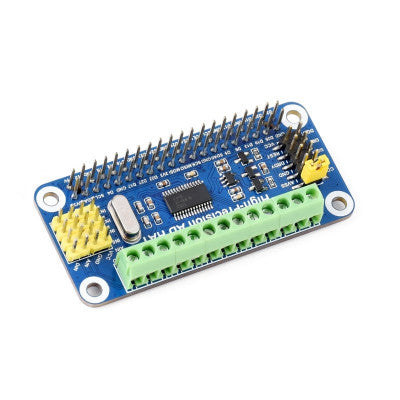

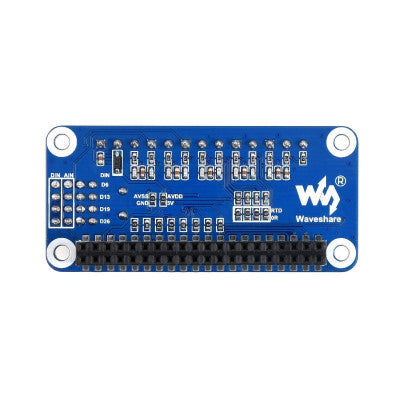

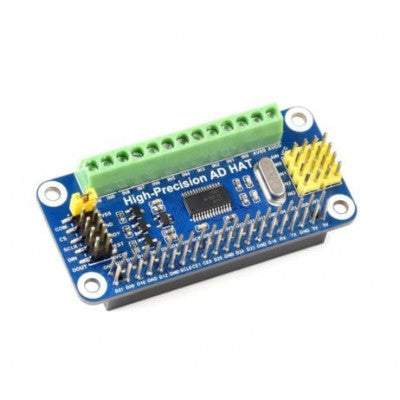

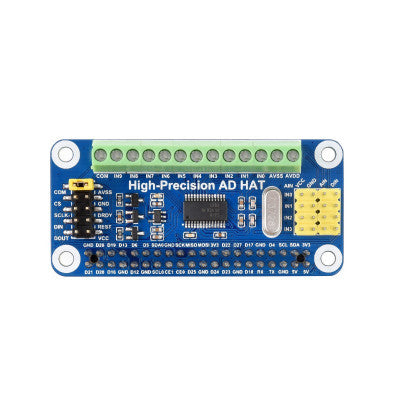

Waveshare High-Precision AD HAT For Raspberry Pi ADS1263 10-Ch 32-Bit ADC
High-precision ADC HAT with ADS1263 chip for Raspberry Pi
- Onboard AD header input: Compatible with Waveshare sensor pinout
- Onboard AD screw terminal input: Allows connecting analog signal and analog power supply
- Onboard control header: Easy module control by other hosts
- Three-wire RTD circuit: Enabled by soldering 0R resistor
- Adopts ADS1263 chip: Low noise, low temperature drift
- 10-ch 32-bit high precision ADC: 5-ch differential input
- 38.4kSPS Max sampling rate: With embedded 24-bit auxiliary ADC
- IDAC, 2.5V internal reference voltage: Internal ADC test signal
Package Includes:
- 1 X High-Precision AD HAT
- 1 X RPi screws pack (2PCS)
For Software setup, please follow this tutorial.
Images are for illustration only; actual product may vary.
