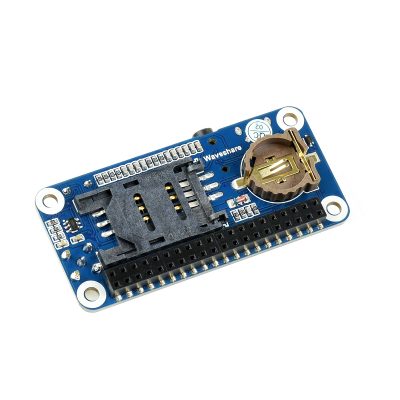

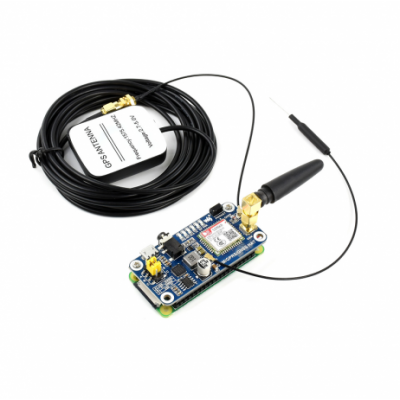

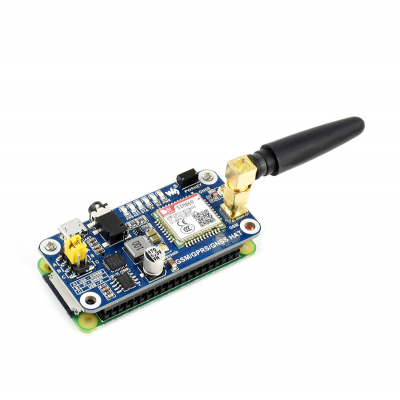

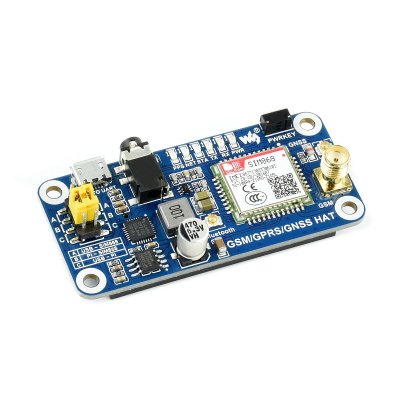

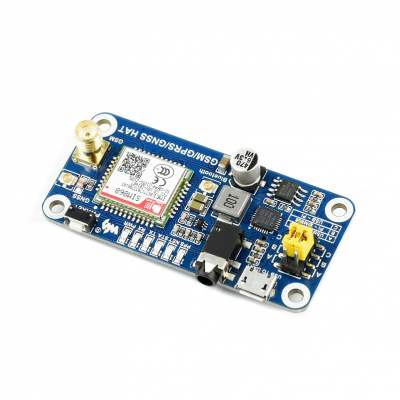

Waveshare GSM/GPRS/GNSS/Bluetooth HAT for Raspberry Pi
A handy, low power Raspberry Pi HAT with multi communication functionalities.
- General: Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Supports: SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
- Positioning: GPS, COMPASS, Glonass, LBS base station positioning, Omni-positioning
- Bluetooth: 3.0, supports data transferring through Bluetooth

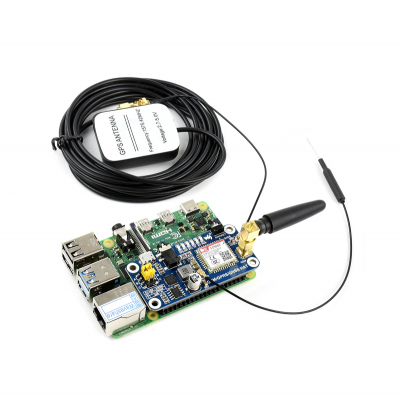

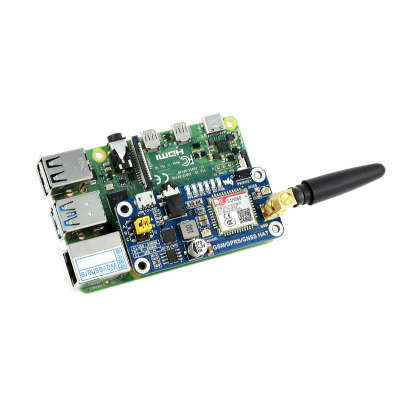

This Raspberry Pi HAT allows your Pi to easily make telephone calls, send messages, connect to wireless Internet, global position, transfer data via Bluetooth, and more. Note: Raspberry Pi shown in the image is not included with the product; you have to purchase it separately.
- Band: GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz
- Quad-band: Auto search
- Emitting power: Class 4 (2W @ GSM 850/EGSM 900 MHz), Class 1 (1W @ DCS 1800/PCS 1900 MHz)
- GPRS connectivity: GPRS multi-slot class 12 (default), GPRS multi-slot class 1~12 (configurable)
- Downlink speed: Max 85.6kbps
- Uplink speed: Max 85.6kbps
- Receiver type: 33 tracking channels, 99 acquisition channels
- GPS: L1C/A code
Package Includes:
1 x GSM/GPRS/GNSS HAT
1 x GSM Antenna
1 x GPS External Antenna (B)
1 x Bluetooth Antenna
1 x USB type A plug to micro plug cable
1 x RPi screws pack (2pcs)
*Images are for illustration only; actual product may vary.
