Dual ETH Mini-Computer For Raspberry Pi Compute Module 4
An expansion board for Raspberry Pi Compute Module 4 with Gigabit Ethernet and 4CH Isolated RS485
- CM4 socket: Suitable for all variants of Compute Module 4

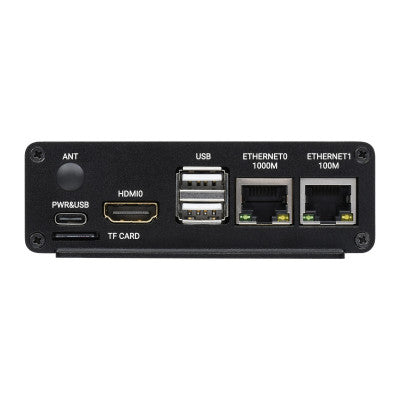

- Networking: Gigabit Ethernet RJ45 connector, 100M Ethernet RJ45 connector
- USB: USB 2.0 Type A
- Connector: Isolated RS485, Power screw terminal
- Camera: MIPI CSI-2 port (15pin 1.0mm FPC connector)
- Video: HDMI port, supports 4K 30fps output
- Storage: Micro-SD card socket for Compute Module 4 Lite (without eMMC) variants
- Fan Header: Allows speed adjustment 5V
Features:
- Cooling Fan Included
- Precise Cut-Out With Clear Label
- Dual ETH Quad RS485 Computer Based On CM4

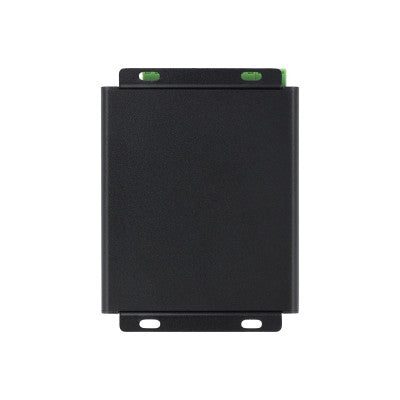

- Wall Mount Holes On Two Sides, Handy For Mounting

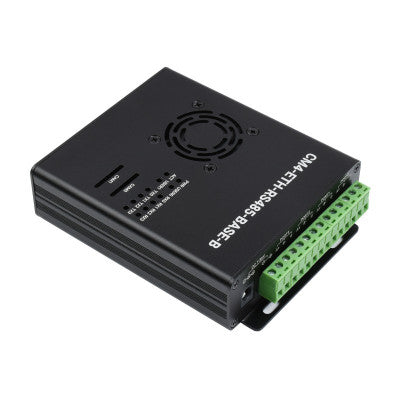

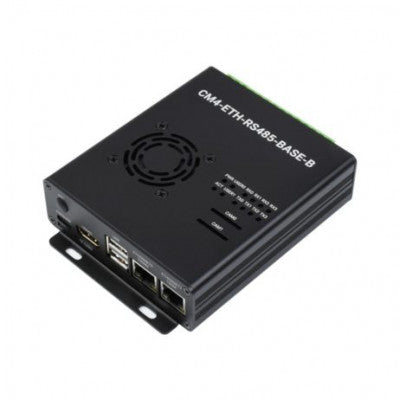

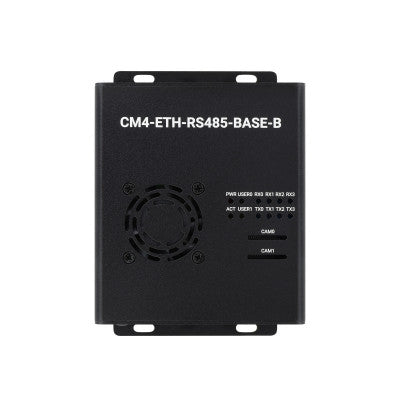

The CM4-ETH-RS485-BASE-B is an expansion board designed for use with the Raspberry Pi Compute Module 4. It supports a 7-36V DC power supply and a 5V DC power supply of Type-C interface. The board features four isolated RS485 interfaces, 100M+1000M dual network ports, HDMI interface, two CSI interfaces, and two USB interfaces. Please note that the Raspberry Pi Compute Module 4 is not included.
This expansion board is suitable for Raspberry Pi applications that require multi-channel RS485 communication. It also includes a real-time clock with a battery socket and the ability to wake the Compute Module 4.
- Product weight: 280g
- Dimension: 12 x 10 x 3 mm
Package Includes:
- 1 X CM4-ETH-RS485-BASE-B
- 1 X Fan
- 1 X Screwdriver
- 1 X Screws pack
*Images are for illustration only; actual product may vary.
