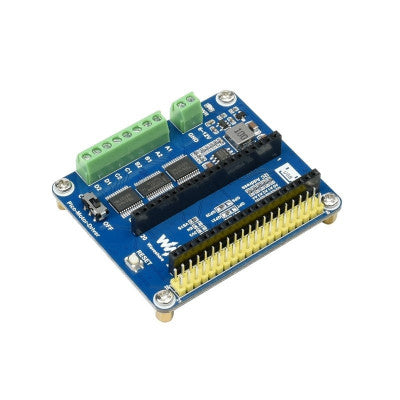

Waveshare 4 DC Motor Driver HAT for Raspberry Pi Pico
Designed for Raspberry Pi Pico, PWM control up to 4 DC motors at 1.2A (3.2A peak)
- Power Input: 6-12V
- Current: 1.2A constant, 3.2A peak
- Regulator: Onboard 5V regulator for Raspberry Pi Pico
- Control: I2C controlled, supports 32 different I2C addresses
- Chip: Onboard PCA9685 chip for 12-bit hardware PWM
- Driver: Onboard TB6612FNG dual H-bridge motor driver
- Regulator Output: Up to 3A
- Power Source: Battery through VIN terminal
Features:
- Compatible with Raspberry Pi Pico
- I2C controlled with 32 different addresses
- Onboard PCA9685 chip for hardware PWM
- Onboard TB6612FNG dual H-bridge motor driver

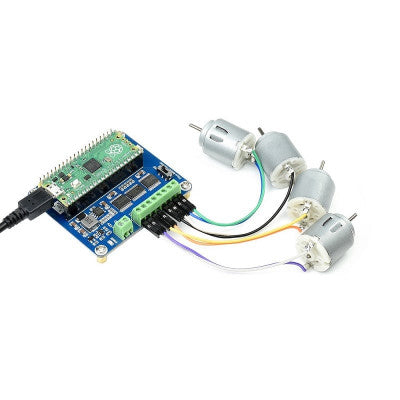

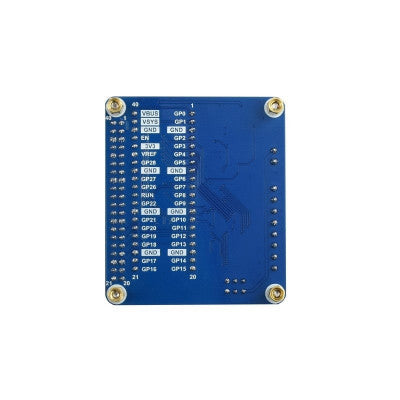

This DC motor driver is specifically designed for the Raspberry Pi Pico, allowing PWM control for up to 4 DC motors with a constant current of 1.2A (3.2A peak). The onboard 5V regulator conveniently powers the Raspberry Pi Pico, and features such as an on/off switch, power indicator LED, and breakout section for unused GPIO pins add to the overall convenience.
The Raspberry Pi Pico will require male header pins with downward-pointing pins and a USB cable for power up.
* Images are for illustration only; actual product may vary.
