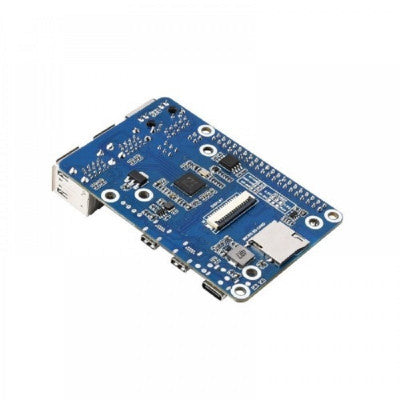

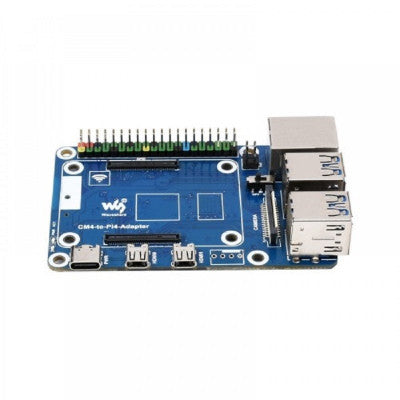

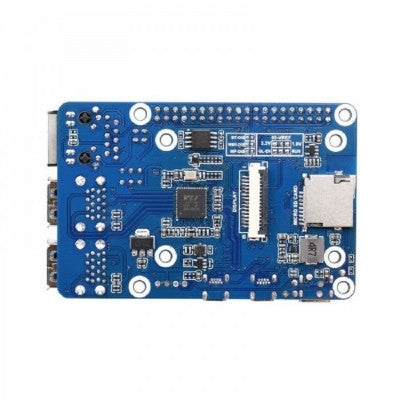

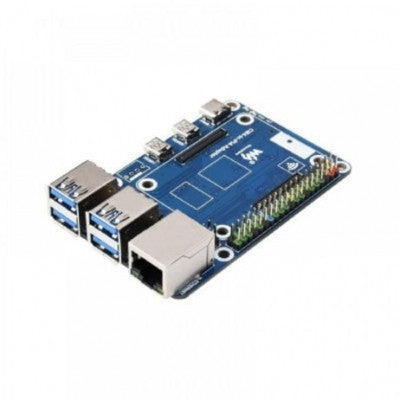

CM4 To Pi 4B Adapter for Raspberry Pi
An alternative solution for Raspberry Pi 4B with onboard USB 3.0 ports, Gigabit Ethernet, and more.
- Spec name: Onboard standard CM4 connector, support access to CM4 Lite / eMMc series boards with Quad Core Cortex A72 64-bit processor
- Spec name: Easily compatible with the interfaces of Raspberry Pi 4B board, the DISPLAY port position is inconsistent with the main board of Raspberry Pi 4B
- Spec name: Onboard 4-ch USB 3.0 ports, compatible with USB 2.0 / 1.1 transmission
- Spec name: Onboard RJ45 Gigabit Ethernet port, 10 / 100 / 1000 M adaptive
- Spec name: Onboard PoE header, for connecting PoE HATs
- Spec name: DSI interface is DSI1
- Spec name: USB Type C interface is for the power supply or can be used as the USB SLAVE interface for programming images
- Spec name: Do not connect to other devices when using the micro USB port to program the image for ensuring the power supply of CM4
- Spec name: CM4 must be provided by 5V 2A, or it will shut down, lower frequency, etc.
Features:
- Standard CM4 connector for powerful performance
- Compatible with Raspberry Pi 4B interfaces
- 4 USB 3.0 ports
- RJ45 Gigabit Ethernet port
Useful link: For Software setup, please follow this tutorial.
Package Includes: 1 x Waveshare CM4 To Pi 4B Adapter for Raspberry Pi
* Images are for illustration only; actual product may vary.
