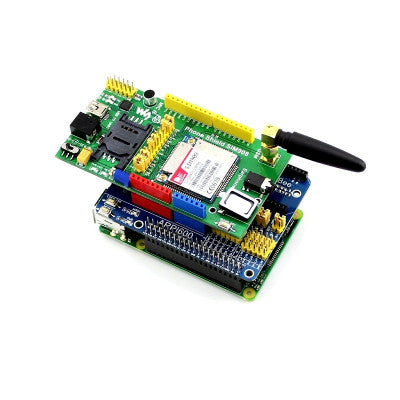

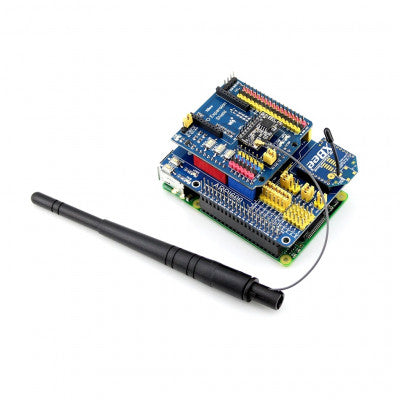

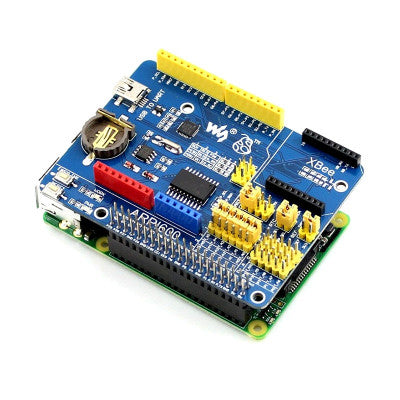

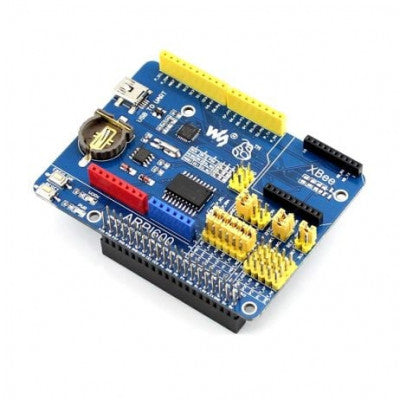

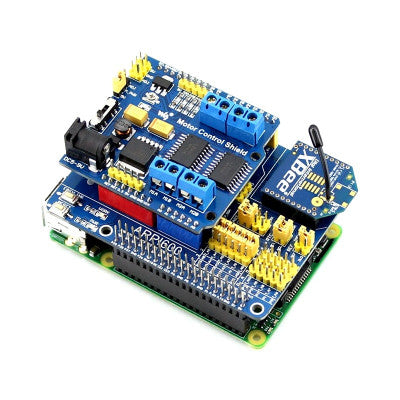

ARPI600 Raspberry Pi Expansion Board
Adapts Raspberry Pi GPIO interface to Arduino pinouts for expanded functionality.
- Arduino connector: for connecting Arduino shields
- ICSP interface: Arduino ICSP
- XBee connector: for connecting XBee communication modules
- Sensor interface: for connecting sensors
- Raspberry Pi connector: for connecting Raspberry Pi
- USB TO UART
- TLC1543: AD converter
- PCF8563: RTCC
- CP2102
- 32.768KHz crystal: for RTCP
- Power indicator
- XBee state LED
- XBee and Arduino interface RESET button
- XBee EasyLink button
- RTC battery holder: for the CR1220 button battery
- TLC1543 reference voltage configuration jumper
- RTC jumper
- UART jumper
- Arduino AD selection jumper
- Arduino I2C selection jumper
- Arduino SPI selection jumper
Features:
- Standard Raspberry Pi 40PIN GPIO extension header
- Compatible with Arduino UNO, Leonardo
- XBee connector for various XBee modules
- Sensor interface for various sensors
The ARPI600 Raspberry Pi Expansion Board simplifies the integration of Arduino shields with your Raspberry Pi, expanding your project possibilities. It also supports XBee modules for wireless features.
The onboard ADC, RTC, and various jumpers provide flexibility for different configurations and projects. The package includes the ARPI600 board, USB cable, and RPi Screws Set.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
