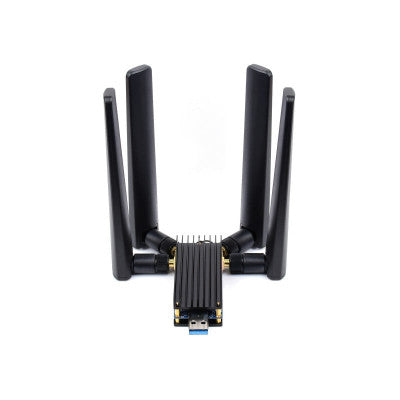

Waveshare 5G DONGLE Module
A high-speed 5G wireless communication module with USB 3.1 port

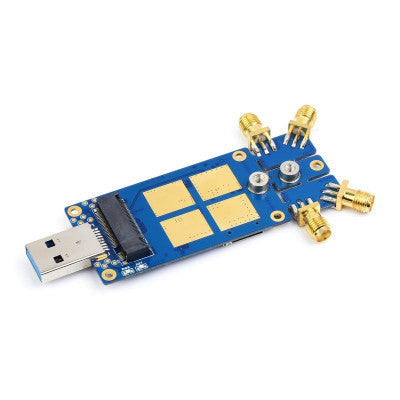

- Support: 5G modules with M.2 (NGFF) Key B interface
- Compatibility: SIMCom and Quectel 5G modules
- USB: 3.1 Type A port for PC, Raspberry Pi, or Jetson Nano

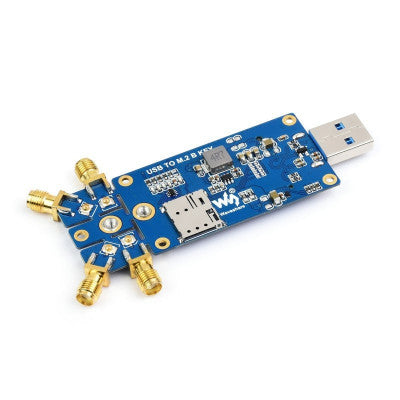

- Antennas: 4x SMA connectors for easy installation

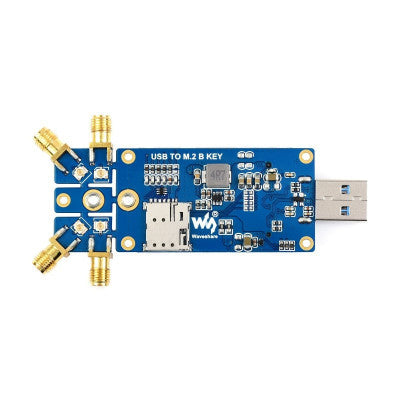

- SIM Card Slot: Onboard slot for NANO SIM card
- Indicators: Power and network indicators onboard

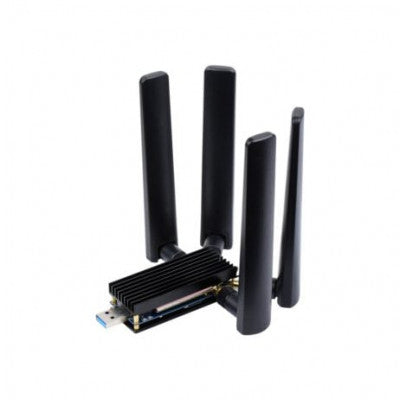

- Heatsink: Customized aluminum alloy heatsink for heat dissipation
The Waveshare 5G DONGLE Module is designed to provide high-speed internet connectivity through 5G networks. Equipped with four antennas, it ensures high-speed data transmission and reliable signal reception. The USB 3.1 port allows easy connection to devices like laptops and desktop computers, with backward compatibility with USB 2.0 and USB 1.1 ports.
The module supports 5G modules with M.2 (NGFF) Key B interface and is compatible with SIMCom and Quectel 5G modules. It also supports 5G modules with 3042/3052 form factor, such as SIM82XX and RM50XQ series 5G modules. The onboard SIM card slot accommodates a NANO SIM card, while the power and network indicators help in checking the module's operating status.

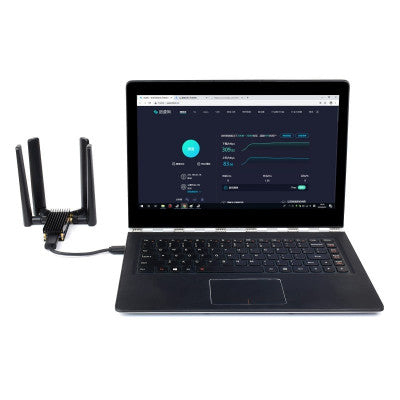

With a USB 3.1 Type A port, the module can be connected to PCs, Raspberry Pi, or Jetson Nano host boards to enable high-speed 5G network connectivity. The four SMA antenna connectors make antenna installation easy, and the module comes with a customized aluminum alloy heatsink for efficient heat dissipation.
- Package Includes:
- 1 x Waveshare 5G DONGLE Module
- 1 x Aluminum Alloy case (top and bottom)
- 4 x Antenna
- 1 x IPEX adapter cable
- 1 x USB3.0 female to dual USB male extension cable
- 1 x SMA Protective Cap
- 1 x Thermal tape
- 1 x Screws pack
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
