3.5 inch HDMI Capacitive Touch IPS LCD Display (E), 640x480, Audio Jack
High-quality display with capacitive touch and audio support
- Screen Size: 3.5 inch
- Resolution: 640x480
- Touch Type: Capacitive
- Touch Points: 5-point
- Compatibility: Raspberry Pi OS, Ubuntu, Kali, WIN10 IoT, Retropie
- Driver: Driver-free for USB-C touch, Config file required for I2C touch
- Support: All versions of Raspberry Pi
Top Features:
- 3.5inch IPS screen with 640x480 resolution
- 5-point capacitive touch with tempered glass panel
- Supports various operating systems including Raspberry Pi OS, Ubuntu, Kali, and Retropie

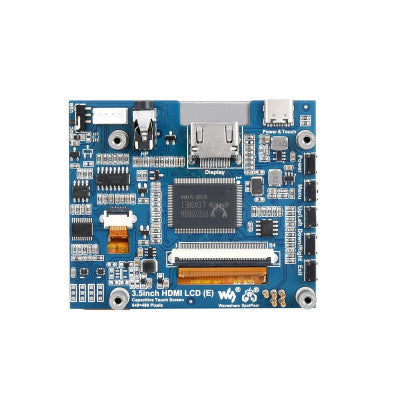

- Onboard dual touch circuit for USB Type-C or I2C touch

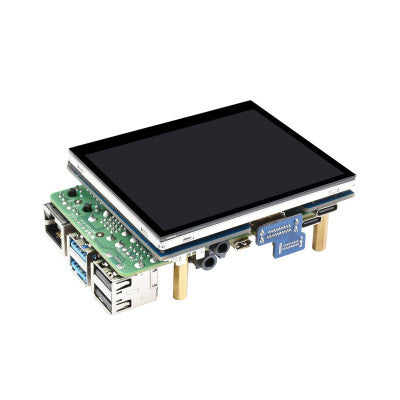

Set the touch interface selector switch on the back of the screen to I2C. Fix the Raspberry Pi to the screen through the copper posts, aligning the position of the pogo pins. Connect the HDMI port to the screen and the Raspberry Pi. Manually configure the resolution for Raspberry Pi OS, Ubuntu, Kali, and Retropie systems to avoid display issues. No problems on Windows systems.
When used with Tinker Board 2, it supports Android and Debian. Ubuntu is supported with Jetson Nano. As a computer monitor, it supports Windows 11/10/8.1/8/7. Features a 3.5mm audio and speaker interface with HDMI audio output.
For Software setup, please follow this tutorial.
- Package Includes:
- 1 X 3.5inch HDMI LCD
- 1 X HDMI Adapter
- 1 X HDMI Adapter
- 1 X HDMI cable
- 1 X USB-A to USB-C cable
- 1 X Screws pack
Images are for illustration only; actual product may vary.
