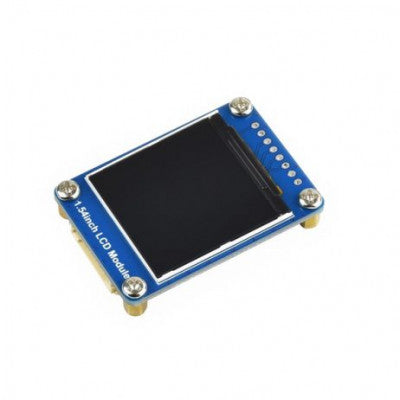

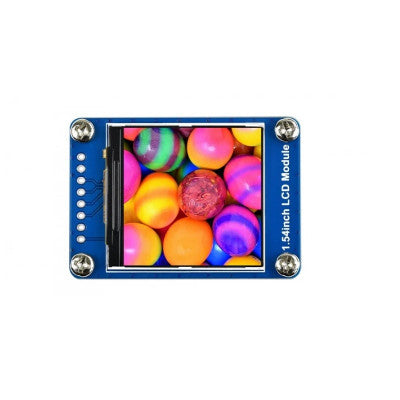

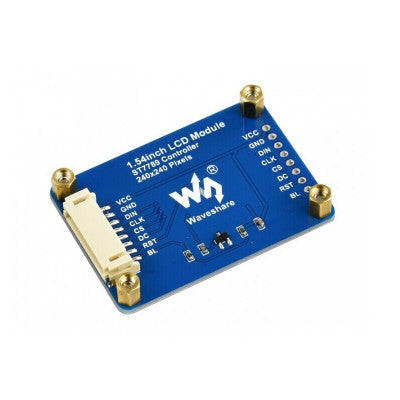

Waveshare 1.54inch TFT LCD Display Module
A colorful and bright display module with SPI interface
- Screen Type: TFT
- Diagonal Size: 1.54 inches
- Resolution: 240x240
- Controller: ST7789
- Interface: SPI
Top Features:
- Colorful and bright display
- Compatible with 3.3/5V operation voltage level
- Backlight Control Circuit included
- Basic functions encapsulated for easy setup
This lovely little display breakout is the best way to add a small, colorful, and bright display to any project. Even a very small one with low memory and few pins available! The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic.
The 1.54 Inch SPI 240X240 TFT LCD Display Module will always come with the same driver chip so there are no worries that your code will not work from one to the other.
The basic functions have been encapsulated on the demo, which can realize picture rotation, draw dots, lines, circles, rectangles, and display pictures.
Useful link: To do Hardware and Software setup, please follow this tutorial.
- Package Includes: 1 x Waveshare 240240, General 1.54inch LCD Display Module, IPS, 65K RGB
Images are for illustration only; actual product may vary.
