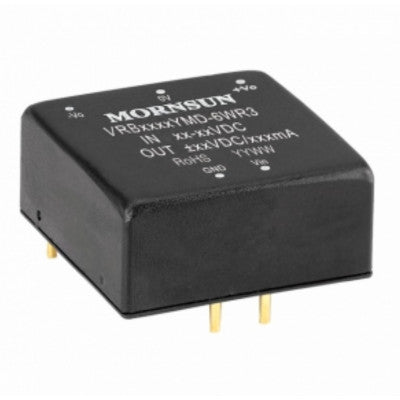

VRB2412YMD-6WR3 Mornsun 24V to 12V DC-DC Converter 6W Power Supply Module - DIP Package
Efficient DC-DC converter with wide input voltage range and multiple protections.
- Input Voltage Range: Wide 2:1
- Efficiency: Up to 88%
- No-load Power Consumption: As low as 0.12W
- I/O Test Isolation Voltage: 1.5k VDC
- Protections: Input under-voltage, output short circuit, over-current, overvoltage
- Operating Temperature: -40 to +85
- Compliance: CISPR32/EN55032 CLASS A, IEC60950, UL60950, EN60950
Top Features:
- Wide input voltage range
- High efficiency up to 88%
- Multiple protection features
- Compact DIP package
The VRB2412YMD-6WR3 Mornsun 24V to 12V DC-DC Converter is an efficient power supply module designed for various applications. With an industry-standard pin-out and approvals from IEC60950, UL60950, and EN60950, this converter ensures reliable performance.
Ensure your devices are powered safely with the input under-voltage protection and output protections against short circuits, over-current, and overvoltage. The converter operates within a wide ambient temperature range, making it suitable for diverse environments.
Download the datasheet for detailed technical information and specifications.
- Package Includes: 1 x VRB2412YMD-6WR3 Mornsun 24V to 12V DC-DC Converter 6W Power Supply Module - DIP Package
Images are for illustration only; actual product may vary.
