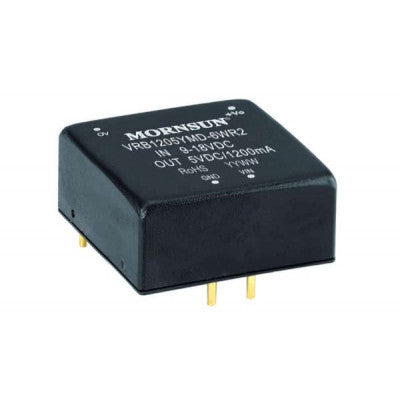

VRB1205YMD-6WR3 Mornsun 12V to 5V DC-DC Converter
Efficient 6W power supply module with wide input voltage range
- Input Voltage Range: Wide 2:1
- Efficiency: Up to 88%
- No-load Power Consumption: As low as 0.12W
- I/O Test Isolation Voltage: 1.5k VDC
- Protection Features: Input under-voltage, output short circuit, over-current, overvoltage
- Operating Temperature: -40 to +85°C
- Compliance: CISPR32/EN55032 CLASS A, IEC60950, UL60950, EN60950
- Package Includes: 1 x VRB1205YMD-6WR3 Mornsun 12V to 5V DC-DC Converter 6W Power Supply Module - DIP Package
Top Features:
- Wide 2:1 input voltage range
- High efficiency up to 88%
- Low no-load power consumption of 0.12W
- 1.5k VDC I/O test isolation voltage
Download the datasheet for more information on the VRB1205YMD-6WR3 Mornsun 12V to 5V DC-DC Converter.
Images are for illustration only; actual product may vary.
