Monster Moto Shield VNH2SP30 Motor Driver 14A
Ramped up version of Ardumoto motor driver shield with high-current capabilities.
- Driver Model: Monster Moto Shield VNH2SP30
- Operating Voltage(VDC): 12~16
- Peak Current (A): 30 (10 seconds)
- Continuous Current (A): 14
- No. of Channels: 1
- Over-Current Protection (A): Yes
- Thermal Protection: Yes
- LED Indicator: Yes
- Cooling Fan: NO
- Arduino Shield: No - can be used with Wire connection
- Dimensions in mm (LxWxH): 55 x 28 x 12
- Weight (gm): 15
- Maximum PWM frequency: 20 kHz
Features:
- Current sensing available to Arduino analog pin
- MOSFET on-resistance: 19 m (per leg)
- Maximum PWM frequency: 20 kHz
- Thermal Shutdown

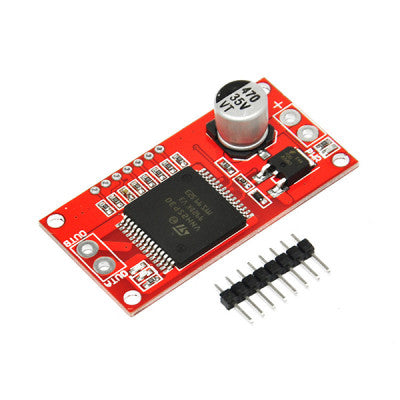

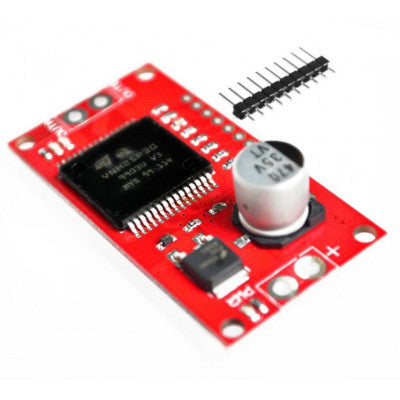

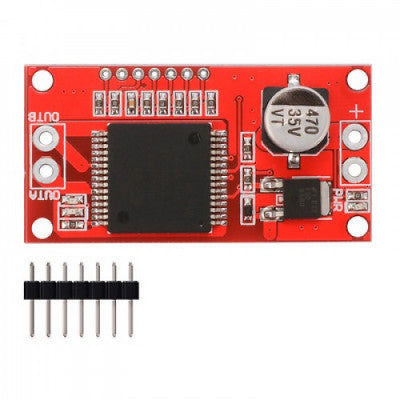

The Monster Moto Shield VNH2SP30 Motor Driver 14A is essentially a ramped up version of our Ardumoto motor driver shield. We've replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.
Note: When using this board in extreme high-demand applications, it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system). However, when using the board at currents up to 6A, the chips will barely become noticeably warm.
Package Includes:
- 1 x Monster Moto Shield VNH2SP30 Motor Driver 14A Module
- 1 x Row of 7 pins
Images are for illustration only; actual product may vary.
