VCB4815SBO-10WR3 Series Isolated 10W DC-DC Converter
Efficient and reliable 10W DC-DC converter with a wide input voltage range
- Input Voltage Range: 36-75V
- Nominal Voltage: 48V
- Output Voltage: 15V
- Output Current: 667mA
- Wattage: 10W
- Isolation: 1.5kVDC
- Package: DIP
Top Features:
- Wide 2:1 input voltage range
- High efficiency up to 88%
- I/O isolation test voltage 1.5kVDC
- Operating temperature range: -40°C to +85°C
The VCB4815SBO-10WR3 series are isolated 10W DC-DC converter products with a 2:1 input voltage range. They feature efficiencies of up to 88%, 1500VDC input to output isolation, operating temperature of -40°C to +85°C, input under-voltage protection, output over-voltage, over-current, and short circuit protection. These converters are widely used in the communication field, such as switches, repeaters, intelligent communication gateways, GPS synchronous clocks, and 4G/5G base stations.
Package Includes:

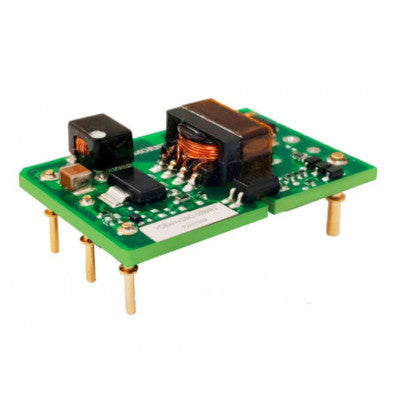

1 x VCB4815SBO-10WR3 Mornsun 48V to 15V DC-DC Converter 10W High Efficiency Isolated Module - DIP Package
* Images are for illustration only; actual product may vary.
