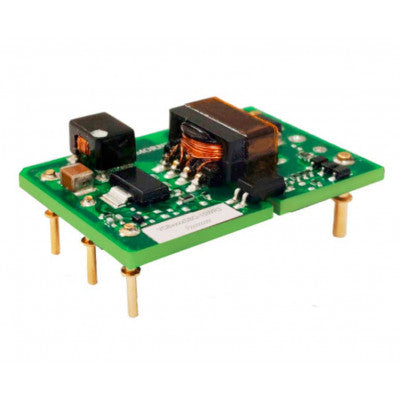

VCB4812SBO-10WR3 Series Isolated 10W DC-DC Converter
Efficient and reliable 10W DC-DC converter with 2:1 input voltage range
- Input Voltage Range: 36-75V
- Nominal Voltage: 48V
- Output Voltage: 12V
- Output Current: 833mA
- Wattage: 10W
- Isolation: 1.5kVDC
- Package: DIP
Features:
- Wide 2:1 input voltage range
- High efficiency up to 88%
- I/O isolation test voltage 1.5kVDC
- Input under-voltage protection, output short-circuit, over-current, over-voltage protection
The VCB4812SBO-10WR3 series isolated 10W DC-DC converters are designed for use in the communication field, including switches, repeaters, intelligent communication gateways, GPS synchronous clocks, and 4G/5G base stations. These converters offer efficiencies of up to 88% and provide 1500VDC input to output isolation. With operating temperatures ranging from -40°C to +85°C, they ensure reliable performance even in challenging environments.
The converters come with input under-voltage protection, output over-voltage protection, over-current protection, and short circuit protection to safeguard your equipment. They are housed in an industry-standard 1/16 brick package and are EN62368 approved, meeting UL62368 standards for safety and quality.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
