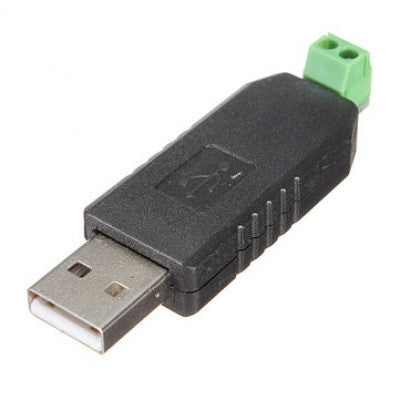

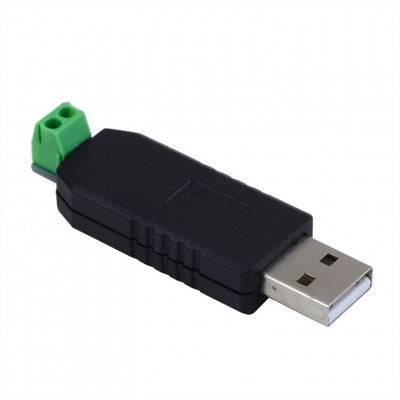

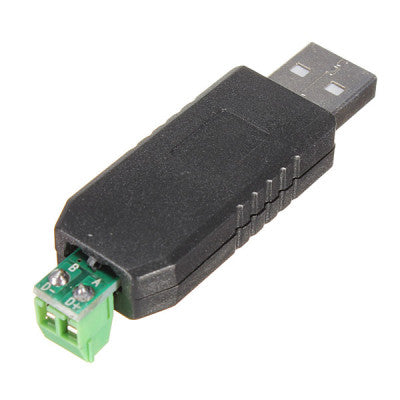

USB to RS485 Converter Adapter Module
Easy-to-use RS485 interface with Virtual Com Port support
- Color: Black
- Screw Terminal: 2
- Baud Rate (bps): 75 to 115200
- Max. Baud Rate (Mbps): 6
- Operating Temperature (C): -40 to 90
- Communication Distance (m): 1200
- Length (mm): 60
- Width (mm): 18
- Height (mm): 12
- Weight (gm): 20
Top Features:
- Fully compliant USB 2.0 standard
- Supports Windows XP, Vista, 7, Linux, MacOS, and WinCE 5.0
- Plug and play with hot-swap (USB side)
- Communication distance up to 1.2KM
The USB to RS485 Converter Adapter module provides an easy-to-use RS485 interface through a Virtual Com Port on the user's system. It operates without any command structures, automatically converting data to RS485 and vice versa. The module is self-powered via the USB bus, making it convenient for controlling and communicating with RS-485 devices from a PC.
With a baud rate range of 75 bps to 115200 bps (up to 6 Mbps), this converter supports half-duplex RS-485 communication without the need for an external power supply. It appears as a serial/com port for easy access from applications or hyper-terminal.
Applications include parameter settings for devices with RS485 ports, data communication, LED display of communication data, machine PLC data reading and writing, monitoring data read and write, PTZ control, centralized control of household electrical appliances, and access control system card usage.
*Images are for illustration only; actual product may vary.
